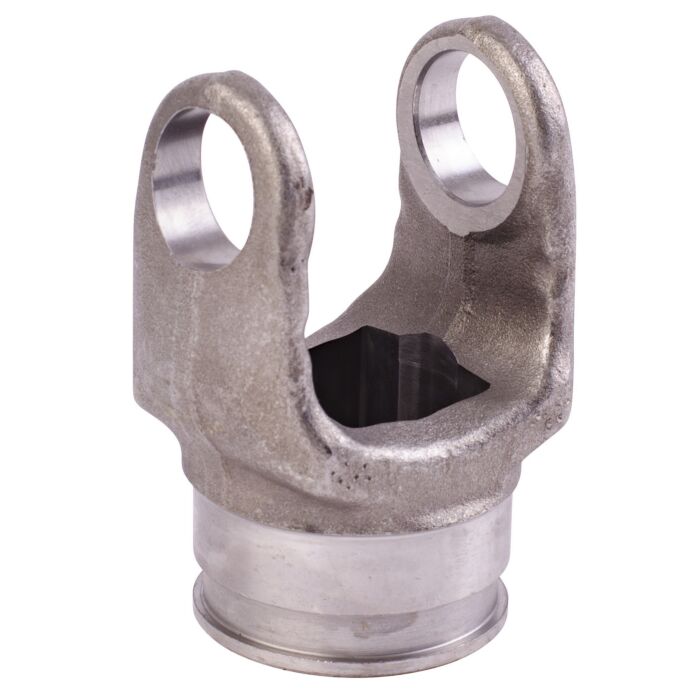

12 series yoke with 1 1/4 x 1 3/8 rectangle bore and weld connection
SKU: 7001200 | Location: Aisle 08, Section W1
$39.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube profiles.
| Brand | Weasler |
|---|---|
| UPC | 728357101033 |
| Store Location (Lititz, PA) | Aisle 08, Section W1 |
| Package Length (in) | 4.40" |
| Package Width (in) | 0.80" |
| Package Height (in) | 3.40" |
| Manufacturer Part Number | 700-1200 |
| Length | 3.375 inch |
| Height | 3 inch |
| Width | 2.37 inch |
| Weight | 1.84 lb |
| Series | 12 |
| Outside Diameter | 2.22" |
| Bore | 1.375" |
| Bore Description | 1 1/4 X 1 3/8 RECTANGLE |
| Connection Description | WELD |
| Bearing Diameter 1 | 1.063" |
| Bearing Span 1 | 2.5" |
| Bearing Diameter 2 | 2.06" |
| Bearing Span 2 | 0.35" |
| Horsepower at 540 RPM | 26 hp |
| Horsepower at 1000 RPM | 40 hp |
