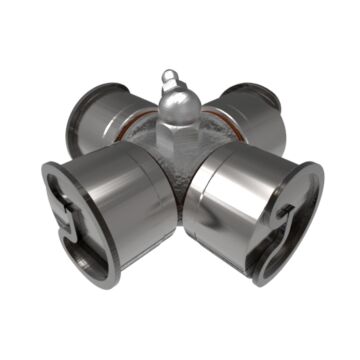

Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube profiles.
Brand | Weasler |
---|---|
UPC | 728357101040 |
Store Location (Lititz, PA) | Aisle 08, Section W1 |
Package Length (in) | 3.80" |
Package Width (in) | 2.40" |
Package Height (in) | 0.20" |
Manufacturer Part Number | 700-1400 |
Length | 3.375 inch |
Height | 3.38 inch |
Width | 2.31 inch |
Weight | 1.86 lb |
Series | 14 |
Outside Diameter | 2.22" |
Bore | 1.375" |
Bore Description | 1 1/4 X 1 3/8 RECTANGLE |
Connection Description | WELD |
Bearing Diameter 1 | 1.126" |
Bearing Span 1 | 2.622" |
Bearing Diameter 2 | 2.06" |
Bearing Span 2 | 0.35" |
Horsepower at 540 RPM | 38 hp |
Horsepower at 1000 RPM | 58 hp |
