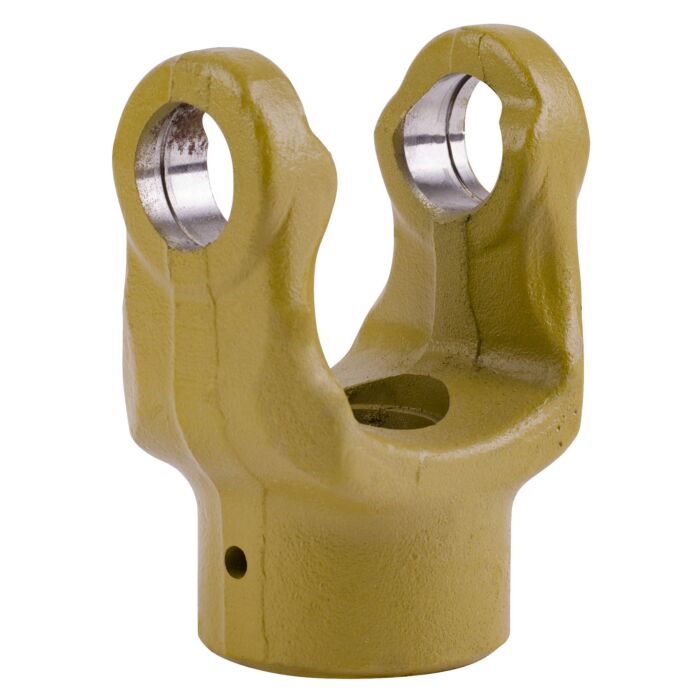

12 Series 1"Round Bore Shear Pin Yoke
SKU: 8021216
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$56.63
Features
Specifications
Weasler Shear Pin Yokes are engineered with a compact, efficient design that disconnects the power source from the drivetrain during an overload. This helps prevent heat generation and damaging torque spikes. The Yoke features a pin that extends through the yoke and spins if broken during operation; once the operator replaces the bolt, the machine can be restarted.
- Inner Diameter: 1"
- Style: North American
- Fits: 12 Series
| Brand | Weasler |
|---|---|
| UPC | 728357101859 |
| Store Location (Lititz, PA) | Aisle 08, Section W1 |
| Package Length (in) | 4.60" |
| Package Width (in) | 1.80" |
| Package Height (in) | 4.00" |
| Manufacturer Part Number | 802-1216 |
| Length | 3.5" |
| Height | 3" |
| Width | 2.16" |
| Weight | 1.82 lbs |
| Series | 12 |
| Bore | 1" |
| Bore Description | ROUND |
| Connection 1 Description | PIN |
| Connection 2 Description | (1) 1/4 Grade 8 |
| Torque | 8000 in-lb |
| Pin Hole Diameter | 0.253" |
| Bearing Diameter | 1.063" |
| Bearing Span | 2.5" |
| Horsepower at 540 RPM | 26 hp |
| Horsepower at 1000 RPM | 40 hp |
| Inner Diameter | 1" |
| Style | North American |
| Fits | 12 Series |
