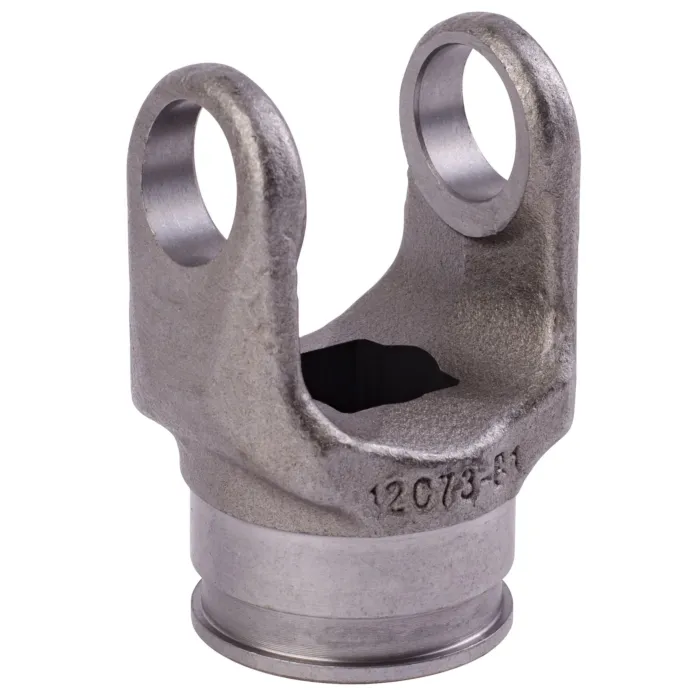

12 series yoke with 1 x 1 1/8 rectangle bore and weld connection
SKU: 3001200
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$44.80
Features
Specifications
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
| Brand | Weasler |
|---|---|
| UPC | 728357100531 |
| Store Location (Lititz, PA) | Aisle 08, Section W1 |
| Package Length (in) | 4.80" |
| Package Width (in) | 0.80" |
| Package Height (in) | 4.20" |
| Manufacturer Part Number | 300-1200 |
| Length | 3.375 inch |
| Height | 3 inch |
| Width | 2.37 inch |
| Weight | 2.18 lb |
| Series | 12 |
| Outside Diameter | 2.25" |
| Bore | 1.125" |
| Bore Description | 1 X 1 1/8 RECTANGLE |
| Connection 1 Description | WELD |
| Bearing Diameter 1 | 1.063" |
| Bearing Span 1 | 2.5" |
| Bearing Diameter 2 | 2.06" |
| Bearing Span 2 | 0.35" |
| Horsepower at 540 RPM | 26 hp |
| Horsepower at 1000 RPM | 40 hp |
