Weasler

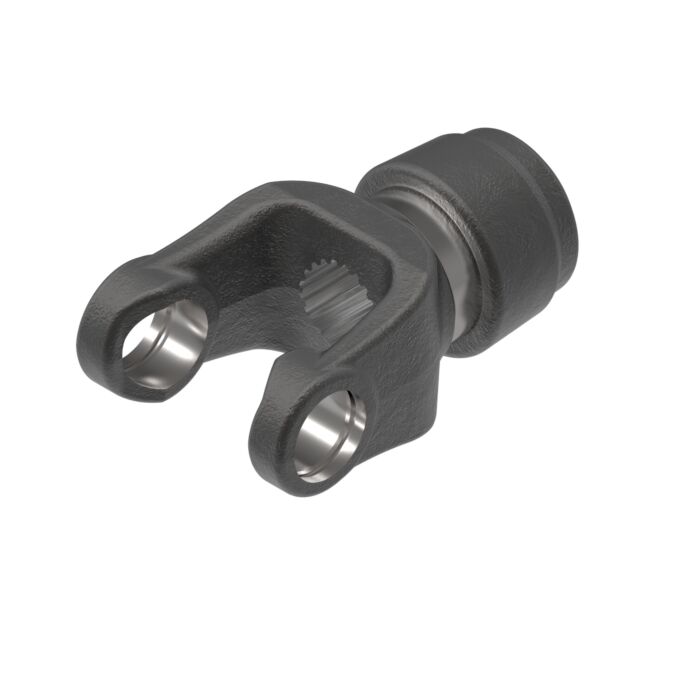

14 series yoke with 1 3/8-21 spline bore and spring-lok connection

SKU: 1001421 | Location: Aisle 08, Section W1
check
PICKUP
Your store: PaulB Lititz, PA |
check
DELIVERY
Ship to your home or business

check 2 In stock

Features chevron-down chevron-up
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8" 6-spline (type 1), 1 3/8" 21-spline (type 2), and 1 3/4" 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2" 8-spline and 1 3/4" 6-spline options are available. Lawn & Turf tractor yokes are offered in 1" 10-spline and 1" 15-spline.
Specifications chevron-down chevron-up
Brand Weasler
UPC 728357100081
Store Location (Lititz, PA) Aisle 08, Section W1
Package Length (in) 4.20"
Package Width (in) 1.40"
Package Height (in) 5.20"
Manufacturer Part Number 100-1421
Length 4.31 inch
Height 3.38 inch
Width 2.75 inch
Weight 2.42 lb
Series 14
Bore 1.375"
Bore Description 1 3/8-21 SPLINE
Connection 1 Description SPRING-LOK
Bearing Diameter 1.126"
Bearing Span 2.622"
Horsepower at 540 RPM 38 hp
Horsepower at 1000 RPM 58 hp
