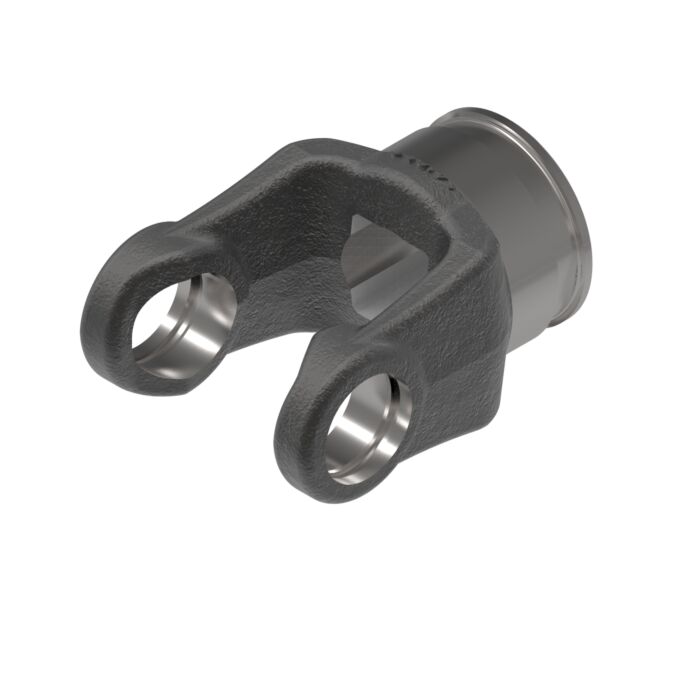

14 series yoke with 1 x 1 1/8 rectangle bore and weld connection
SKU: 3001400
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$50.46
Features
Specifications
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
| Brand | Weasler |
|---|---|
| UPC | 728357100548 |
| Store Location (Lititz, PA) | Aisle 08, Section W1 |
| Package Length (in) | 4.40" |
| Package Width (in) | 1.20" |
| Package Height (in) | 4.40" |
| Manufacturer Part Number | 300-1400 |
| Length | 3.375 inch |
| Height | 3.38 inch |
| Width | 2.31 inch |
| Weight | 2.05 lb |
| Series | 14 |
| Outside Diameter | 2.25" |
| Bore | 1.125" |
| Bore Description | 1 X 1 1/8 RECTANGLE |
| Connection 1 Description | WELD |
| Bearing Diameter 1 | 1.126" |
| Bearing Span 1 | 2.622" |
| Bearing Diameter 2 | 2.06" |
| Bearing Span 2 | 0.35" |
| Horsepower at 540 RPM | 38 hp |
| Horsepower at 1000 RPM | 58 hp |
