SKU: 8003524 | Location: Aisle 08, Section W2
$62.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications

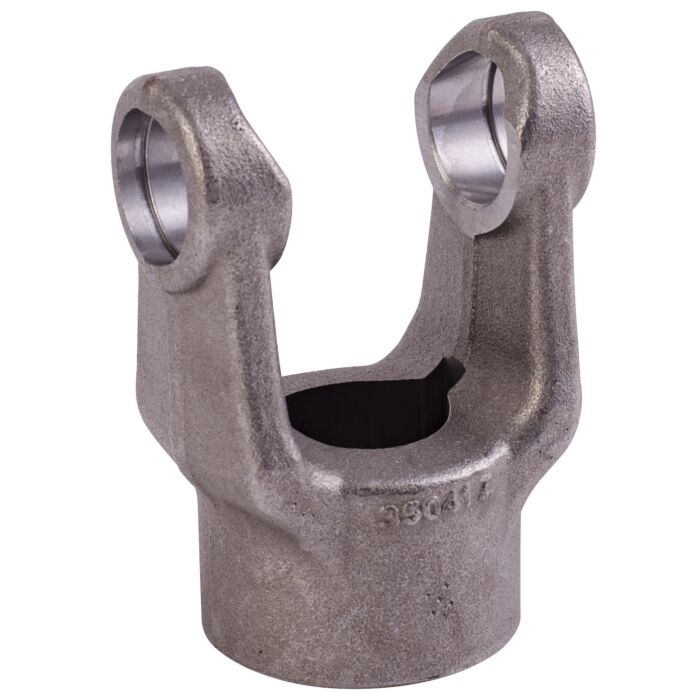

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.
Brand | Weasler |
---|---|
UPC | 728357101507 |
Store Location (Lititz, PA) | Aisle 08, Section W2 |
Package Length (in) | 3.80" |
Package Width (in) | 2.00" |
Package Height (in) | 4.80" |
Manufacturer Part Number | 800-3524 |
Length | 4.19 inch |
Height | 4 inch |
Width | 2.75 inch |
Weight | 3.86 lb |
Series | 35 |
Bore | 1.5" |
Bore Description | ROUND WITH KEYWAY |
Connection Description | SETSCREW |
Keyway | 0.38" |
Bearing Diameter | 1.252" |
Bearing Span | 3.209" |
Horsepower at 540 RPM | 70 hp |
Horsepower at 1000 RPM | 108 hp |
