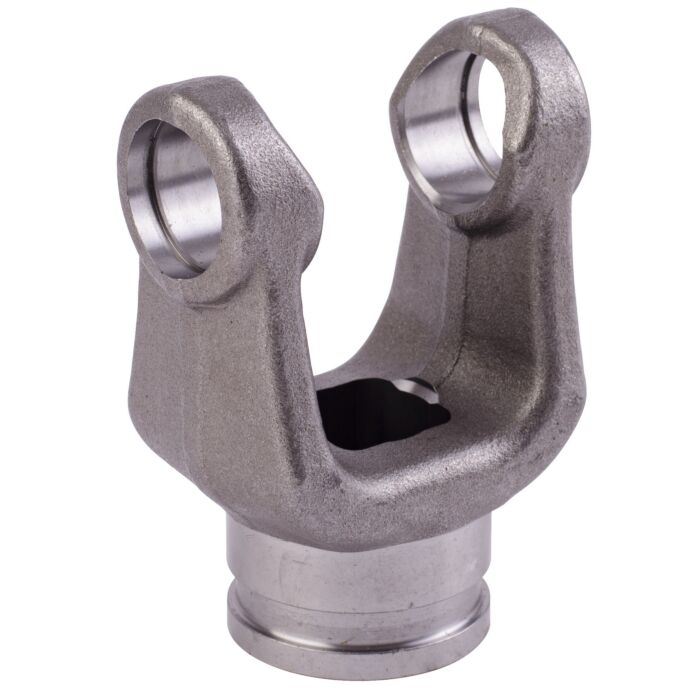

Weasler 35 series yoke with 1 3/16 square bore and weld connection
35 series yoke with 1 3/16 square bore and weld connection
SKU: 3003500 | Location: Aisle 08, Section W2
3 In stock
$59.99
You're viewing information for PaulB Lititz, PA |
Questions? Call us at 717-738-7350
Features
Specifications
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
| Brand | Weasler |
|---|---|
| UPC | 728357100555 |
| Store Location (Lititz, PA) | Aisle 08, Section W2 |
| Package Length (in) | 4.60" |
| Package Width (in) | 1.00" |
| Package Height (in) | 5.00" |
| Manufacturer Part Number | 300-3500 |
| Length | 4.188 inch |
| Height | 4 inch |
| Width | 2.34 inch |
| Weight | 3.1 lb |
| Series | 35 |
| Outside Diameter | 2.25" |
| Bore | 1.1875" |
| Bore Description | 1 3/16 SQUARE |
| Connection 1 Description | WELD |
| Bearing Diameter 1 | 1.252" |
| Bearing Span 1 | 3.209" |
| Bearing Diameter 2 | 2.06" |
| Bearing Span 2 | 0.35" |
| Horsepower at 540 RPM | 70 hp |
| Horsepower at 1000 RPM | 108 hp |
