Weasler

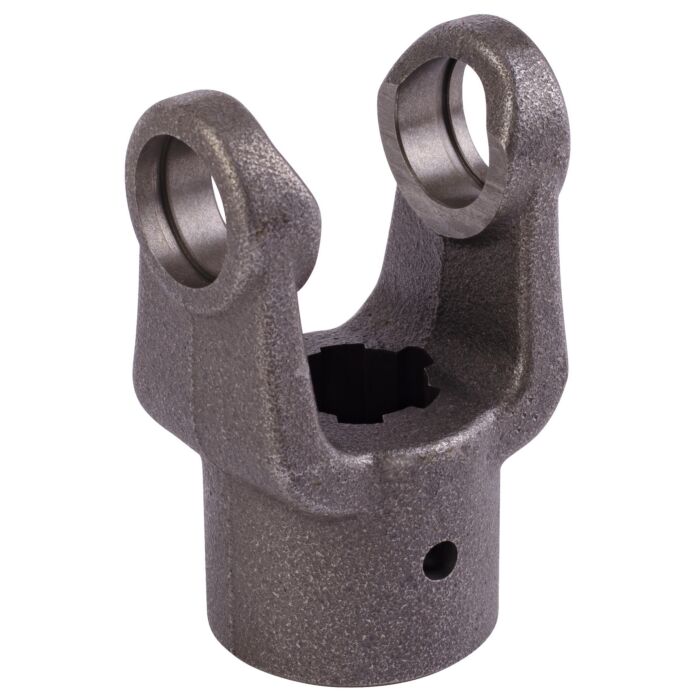

35 Series Implement Yoke with 1-3/8" x 6 Spline Bore

SKU: 8013506
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 1 in stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Weasler 35 Series Standard Cross & Bearing Kit
Weasler
35 Series Standard Cross & Bearing Kit
$26.76
2003500
Weasler 35 Series Extended Lube Cross & Bearing Kit
Weasler
35 Series Extended Lube Cross & Bearing Kit
$42.21
2013500
Features chevron-down chevron-up
Spline Bore yokes allow for secure implement connection. They feature pre-drilled holes for easy installation.
  • Series: 35
  • Style: North American
  • Bore Type: 1-3/8" 6 Spline
  • Hole Size: 21/64"
Specifications chevron-down chevron-up
Brand Weasler
UPC 728357101767
Store Location (Lititz, PA) Aisle 08, Section W2
Package Length (in) 4.60"
Package Width (in) 3.60"
Package Height (in) 2.20"
Manufacturer Part Number 801-3506
Series 35
Bore 1.375"
Bore Description 1 3/8-6 SPLINE
Connection Description PIN
Pin Hole Diameter 0.33"
Pin Hole Location 1
Bearing Diameter 1.252"
Bearing Span 3.209"
Horsepower at 540 RPM 70 hp
Horsepower at 1000 RPM 108 hp
