Weasler

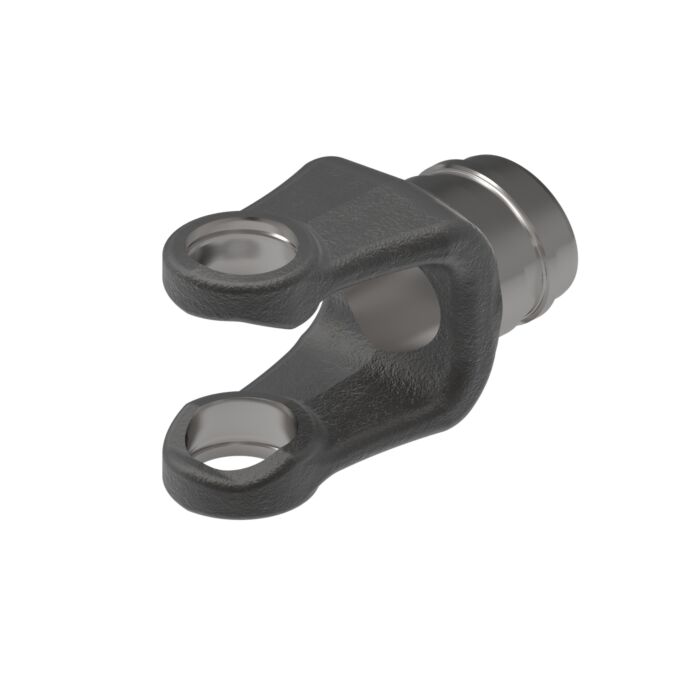

35 Series Tube Weld Yoke (Bore Through), Fits 2-1/4" (.120 Wall) OD Tubing

SKU: 7033500
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 1 in stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Weasler 35 Series Extended Lube Cross & Bearing Kit
Weasler
35 Series Extended Lube Cross & Bearing Kit
$42.21
2013500
Weasler 35 Series Standard Cross & Bearing Kit
Weasler
35 Series Standard Cross & Bearing Kit
$26.76
2003500
Features chevron-down chevron-up
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in North American (domestic) , German, and Italian shaft and tube profiles.
  • Series: 35
  • Size: 2-1/4" (.120 Wall) OD Tubing
  • Style: North American
Specifications chevron-down chevron-up
Brand Weasler
UPC 728357101125
Store Location (Lititz, PA) Aisle 08, Section W2
Package Length (in) 5.00"
Package Width (in) 1.20"
Package Height (in) 5.20"
Manufacturer Part Number 703-3500
Series 35
Outside Diameter 2.25"
Bore 1.6"
Bore Description ROUND
Connection Description WELD
Bearing Diameter 1 1.252"
Bearing Span 1 3.209"
Bearing Diameter 2 2.06"
Bearing Span 2 0.35"
Horsepower at 540 RPM 70 hp
Horsepower at 1000 RPM 108 hp
Style North American
