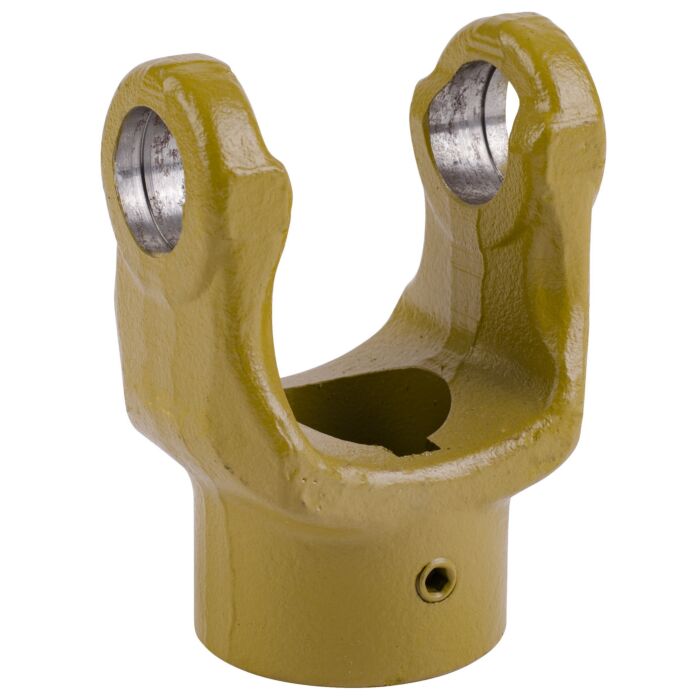

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.
Brand | Weasler |
---|---|
UPC | 728357307152 |
Store Location (Lititz, PA) | Aisle 08, Section W4 |
Package Length (in) | 4.60" |
Package Width (in) | 2.00" |
Package Height (in) | 4.60" |
Manufacturer Part Number | 800-8424 |
Length | 3.74 inch |
Height | 3.82 inch |
Width | 2.36 inch |
Weight | 2.64 lb |
Series | AB4,AW21 |
Bore | 1.5" |
Bore Description | ROUND WITH KEYWAY |
Connection Description | SETSCREW |
Keyway | 0.375" |
Bearing Diameter | 1.063" |
Bearing Span | 2.933" |
Horsepower at 540 RPM | 45 hp |
Horsepower at 1000 RPM | 70 hp |
