Weasler

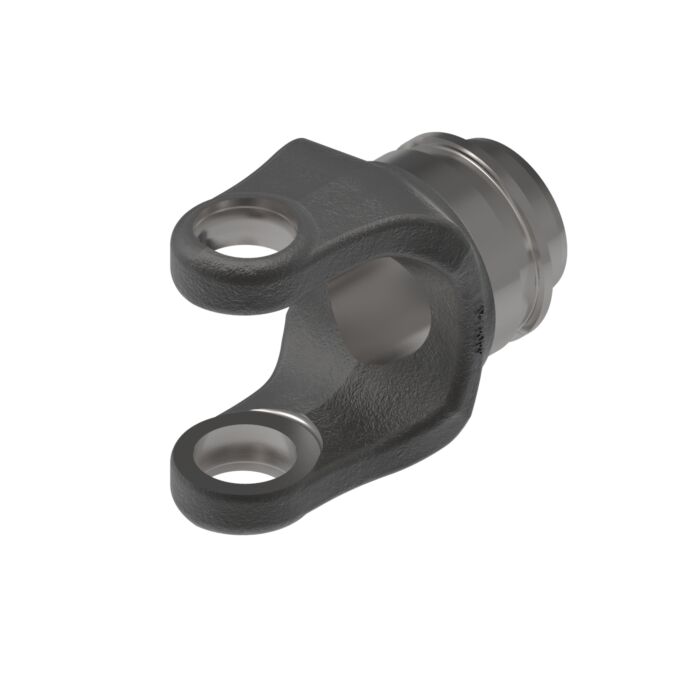

44 Series Tube Weld Yoke, Fits 2-1/2" (.120 Wall) OD Tubing

SKU: 7024400
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 1 in stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Weasler 44 Series Extended Lube Cross & Bearing Kit
Weasler
44 Series Extended Lube Cross & Bearing Kit
$75.18
2014400
Weasler 44 Series Standard Cross & Bearing Kit
Weasler
44 Series Standard Cross & Bearing Kit
$43.25
2004400
Features chevron-down chevron-up
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in North American (domestic) , German, and Italian shaft and tube profiles.
  • Series: 44
  • Size: 2-1/2" (.120 Wall) OD Tubing
  • Style: North American
Specifications chevron-down chevron-up
Brand Weasler
UPC 728357108926
Store Location (Lititz, PA) Aisle 08, Section W2
Package Length (in) 4.20"
Package Width (in) 2.40"
Package Height (in) 5.40"
Manufacturer Part Number 702-4400
Series 44
Outside Diameter 2.875"
Bore 1.875"
Bore Description ROUND
Connection Description WELD
Bearing Diameter 1 1.311"
Bearing Span 1 4.016"
Bearing Diameter 2 2.625"
Bearing Span 2 0.39"
Horsepower at 540 RPM 103 hp
Horsepower at 1000 RPM 158 hp
Style North American
