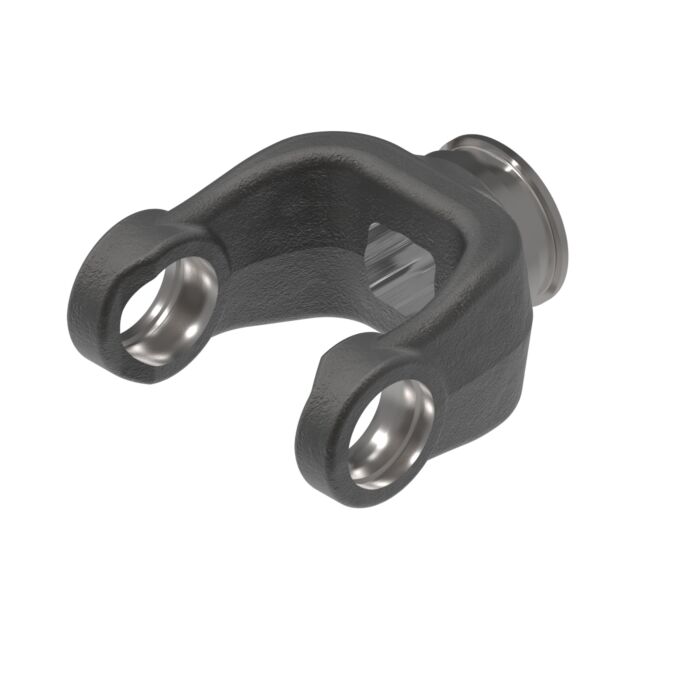

55 series yoke with 1 3/16 square bore and weld connection
SKU: 3015500
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$192.59
Features
Specifications
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
| Brand | Weasler |
|---|---|
| UPC | 728357108513 |
| Store Location (Lititz, PA) | Aisle 08, Section W2 |
| Package Length (in) | 4.20" |
| Package Width (in) | 2.80" |
| Package Height (in) | 5.40" |
| Manufacturer Part Number | 301-5500 |
| Length | 4.375 inch |
| Height | 5.13 inch |
| Width | 2.63 inch |
| Weight | 5.18 lb |
| Series | 55 |
| Outside Diameter | 2.375" |
| Bore | 1.1875" |
| Bore Description | 1 3/16 SQUARE |
| Connection 1 Description | WELD |
| Bearing Diameter 1 | 1.531" |
| Bearing Span 1 | 4.303" |
| Bearing Diameter 2 | 2.125" |
| Bearing Span 2 | 0.39" |
| Horsepower at 540 RPM | 137 hp |
| Horsepower at 1000 RPM | 211 hp |
