Weasler

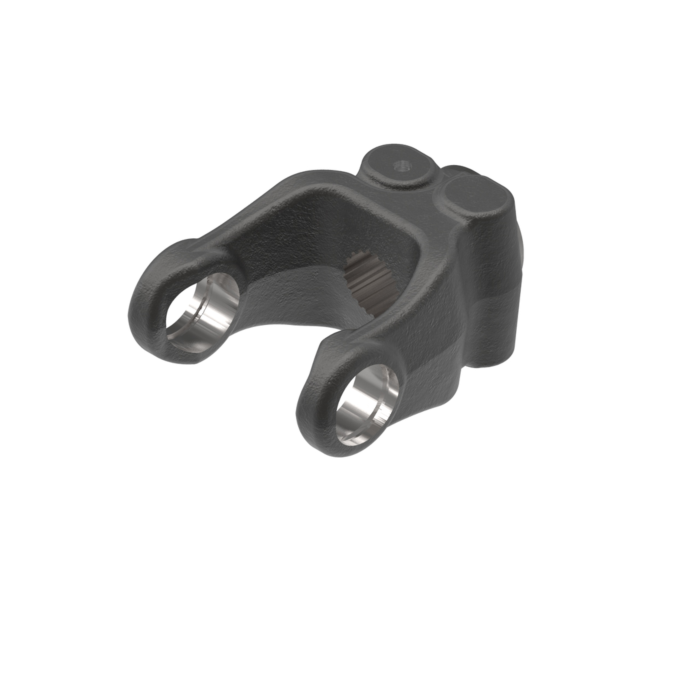

55 series yoke with 1 3/8-21 spline bore and quick disconnect connection

SKU: 1025521 | Location: Aisle 08, Section W2
check
PICKUP
Your store: PaulB Lititz, PA |
check
DELIVERY
Ship to your home or business

check 2 In stock

Features
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8" 6-spline (type 1), 1 3/8" 21-spline (type 2), and 1 3/4" 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2" 8-spline and 1 3/4" 6-spline options are available. Lawn & Turf tractor yokes are offered in 1" 10-spline and 1" 15-spline.
Specifications
Brand Weasler
UPC 728357100319
Store Location (Lititz, PA) Aisle 08, Section W2
Package Length (in) 4.00"
Package Width (in) 3.20"
Package Height (in) 8.60"
Manufacturer Part Number 102-5521
Length 5.13 inch
Height 5.125 inch
Width 2.63 inch
Weight 7.6 lb
Series 55
Bore 1.375"
Bore Description 1 3/8-21 SPLINE
Connection 1 Description QUICK DISCONNECT
Bearing Diameter 1.531"
Bearing Span 4.303"
Horsepower at 540 RPM 137 hp
Horsepower at 1000 RPM 211 hp
