Weasler

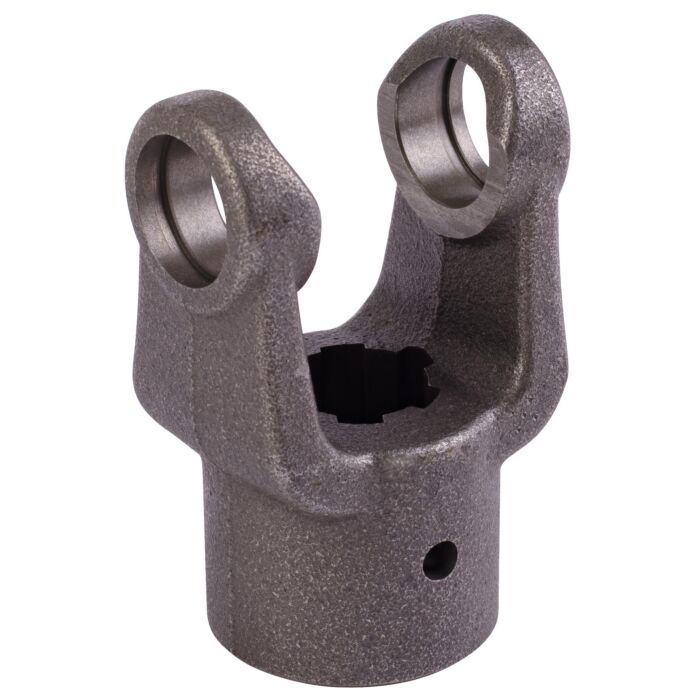

6 Series Implement Yoke with 1-1/8" x 6 Spline Bore

SKU: 8010618
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 1 in stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Weasler 6 Series Extended Lube Cross & Bearing Kit
Weasler
6 Series Extended Lube Cross & Bearing Kit
$26.78
2010600
Weasler 6 Series Standard Cross & Bearing Kit
Weasler
6 Series Standard Cross & Bearing Kit
$16.48
2000600
Features chevron-down chevron-up
Spline Bore yokes allow for secure implement connection. They feature pre-drilled holes for easy installation.
  • Series: 6
  • Style: North American
  • Bore Type: 1-1/8" 6 Spline
  • Hole Size: 1/4"
Specifications chevron-down chevron-up
Brand Weasler
UPC 728357101682
Store Location (Lititz, PA) Aisle 08, Section W1
Package Length (in) 4.00"
Package Width (in) 0.80"
Package Height (in) 2.60"
Manufacturer Part Number 801-0618
Series 6
Bore 1.125"
Bore Description 1 1/8-6 SPLINE
Connection Description PIN
Pin Hole Diameter 0.25"
Pin Hole Location 0.63
Bearing Diameter 0.969"
Bearing Span 2.295"
Horsepower at 540 RPM 19 hp
Horsepower at 1000 RPM 29 hp
