Weasler

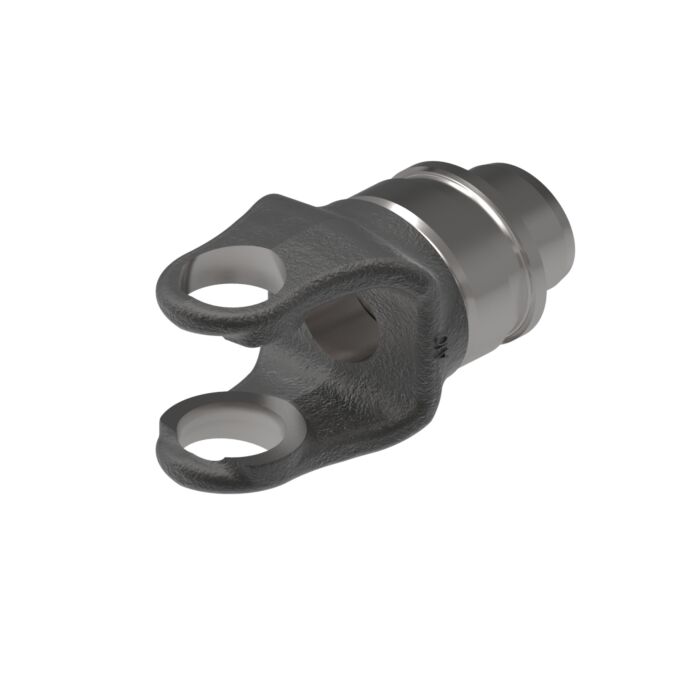

6 Series Tube Weld Yoke, Fits 1-1/2" (.065 Wall) OD Tubing

SKU: 7010600
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 2 in stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Weasler 6 Series Standard Cross & Bearing Kit
Weasler
6 Series Standard Cross & Bearing Kit
$16.48
2000600
Weasler 6 Series Extended Lube Cross & Bearing Kit
Weasler
6 Series Extended Lube Cross & Bearing Kit
$26.78
2010600
Features chevron-down chevron-up
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in North American (domestic) , German, and Italian shaft and tube profiles.
  • Series: 6
  • Size: 1-1/2" (.065 Wall) OD Tubing
  • Style: North American
Specifications chevron-down chevron-up
Brand Weasler
UPC 728357101057
Store Location (Lititz, PA) Aisle 08, Section W1
Package Length (in) 4.60"
Package Width (in) 1.20"
Package Height (in) 4.40"
Manufacturer Part Number 701-0600
Series 6
Outside Diameter 2"
Bore 1"
Bore Description ROUND
Connection Description WELD
Bearing Diameter 1 0.969"
Bearing Span 1 2.295"
Bearing Diameter 2 1.8"
Bearing Span 2 0.29"
Horsepower at 540 RPM 19 hp
Horsepower at 1000 RPM 29 hp
Style North American
