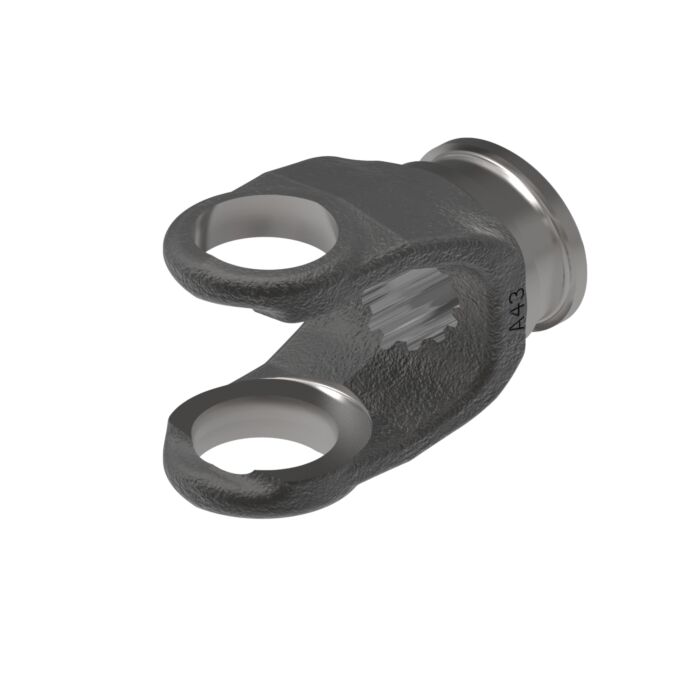

6 series yoke with 1-15 spline bore and weld connection
SKU: 3020600
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$34.49
Features
Specifications
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
| Brand | Weasler |
|---|---|
| UPC | 728357108582 |
| Store Location (Lititz, PA) | Aisle 08, Section W1 |
| Package Length (in) | 4.40" |
| Package Width (in) | 0.60" |
| Package Height (in) | 2.20" |
| Manufacturer Part Number | 302-0600 |
| Length | 2.25 inch |
| Height | 2.5 inch |
| Width | 1.63 inch |
| Weight | 0.68 lb |
| Series | 6 |
| Outside Diameter | 1.55" |
| Bore | 1" |
| Bore Description | 1-15 SPLINE |
| Connection 1 Description | WELD |
| Bearing Diameter 1 | 0.969" |
| Bearing Span 1 | 2.295" |
| Bearing Diameter 2 | 1.375" |
| Bearing Span 2 | 0.33" |
| Horsepower at 540 RPM | 19 hp |
| Horsepower at 1000 RPM | 29 hp |
