Weasler

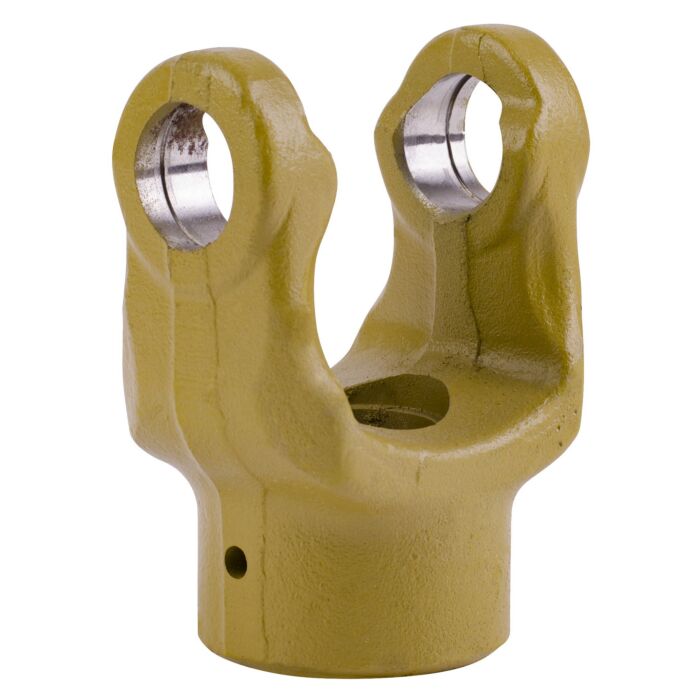

6 Series 1" Round Bore Shear Pin Yoke

SKU: 8020616
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 1 in stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Weasler 6 Series Extended Lube Cross & Bearing Kit
Weasler
6 Series Extended Lube Cross & Bearing Kit
$26.78
2010600
Weasler 6 Series Standard Cross & Bearing Kit
Weasler
6 Series Standard Cross & Bearing Kit
$16.48
2000600
Features chevron-down chevron-up
Weasler Shear Pin Yokes are engineered with a compact, efficient design that disconnects the power source from the drivetrain during an overload. This helps prevent heat generation and damaging torque spikes. The Yoke features a pin that extends through the yoke and spins if broken during operation; once the operator replaces the bolt, the machine can be restarted.
  • Inner Diameter: 1"
  • Style: North American
  • Fits: 6 Series
Specifications chevron-down chevron-up
Brand Weasler
UPC 728357101828
Store Location (Lititz, PA) Aisle 08, Section W1
Package Length (in) 4.40"
Package Width (in) 1.60"
Package Height (in) 3.00"
Manufacturer Part Number 802-0616
Length 2.5"
Height 2.5"
Width 2.06"
Weight 1.24 lbs
Series 6
Bore 1"
Bore Description ROUND
Connection 1 Description PIN
Connection 2 Description (1) 1/4 Grade 5
Torque 4700 in-lb
Pin Hole Diameter 0.253"
Bearing Diameter 0.969"
Bearing Span 2.295"
Horsepower at 540 RPM 19 hp
Horsepower at 1000 RPM 29 hp
Inner Diameter 1"
Style North American
Fits 6 Series
