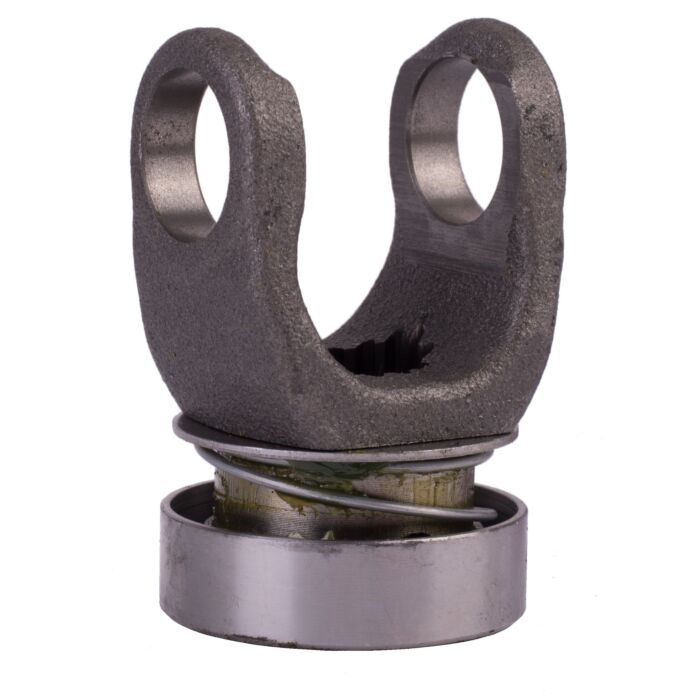

6 series yoke with 1-15 spline bore and spring-lok connection
SKU: 1050615 | Location: Aisle 08, Section W1
$57.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
7 In stock
Features
Specifications
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8" 6-spline (type 1), 1 3/8" 21-spline (type 2), and 1 3/4" 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2" 8-spline and 1 3/4" 6-spline options are available. Lawn & Turf tractor yokes are offered in 1" 10-spline and 1" 15-spline.
| Brand | Weasler |
|---|---|
| UPC | 728357100364 |
| Store Location (Lititz, PA) | Aisle 08, Section W1 |
| Package Length (in) | 4.00" |
| Package Width (in) | 0.80" |
| Package Height (in) | 3.40" |
| Manufacturer Part Number | 105-0615 |
| Length | 2.75 inch |
| Height | 2.5 inch |
| Width | 2.16 inch |
| Weight | 1.04 lb |
| Series | 6 |
| Bore | 1" |
| Bore Description | 1-15 SPLINE |
| Connection 1 Description | SPRING-LOK |
| Bearing Diameter | 0.969" |
| Bearing Span | 2.295" |
| Horsepower at 540 RPM | 19 hp |
| Horsepower at 1000 RPM | 29 hp |
