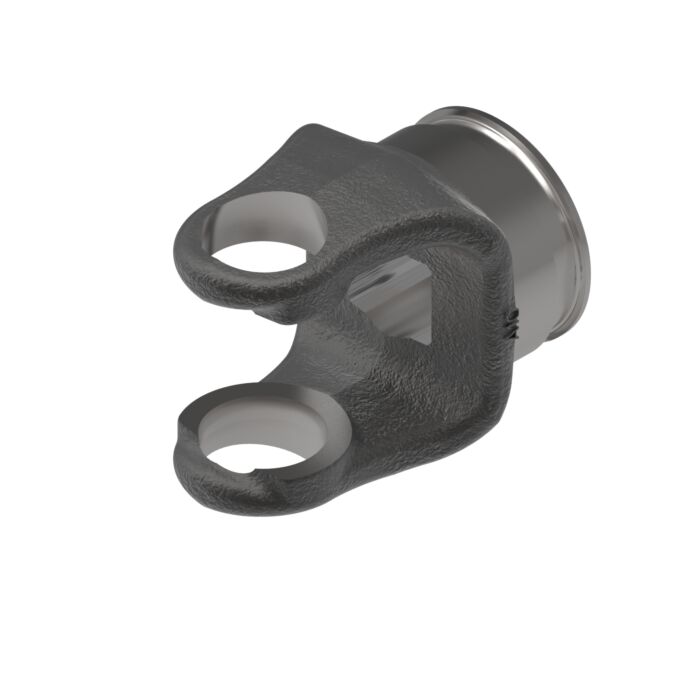

6 series yoke with 3/4 x 7/8 rectangle bore and weld connection
SKU: 3000600
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$31.71
Features
Specifications
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
| Brand | Weasler |
|---|---|
| UPC | 728357100517 |
| Store Location (Lititz, PA) | Aisle 08, Section W1 |
| Package Length (in) | 3.80" |
| Package Width (in) | 0.60" |
| Package Height (in) | 2.80" |
| Manufacturer Part Number | 300-0600 |
| Length | 2.5 inch |
| Height | 2.5 inch |
| Width | 2.06 inch |
| Weight | 1.26 lb |
| Series | 6 |
| Outside Diameter | 2" |
| Bore | 0.875" |
| Bore Description | 3/4 X 7/8 RECTANGLE |
| Connection 1 Description | WELD |
| Bearing Diameter 1 | 0.969" |
| Bearing Span 1 | 2.295" |
| Bearing Diameter 2 | 1.8" |
| Bearing Span 2 | 0.29" |
| Horsepower at 540 RPM | 19 hp |
| Horsepower at 1000 RPM | 29 hp |
