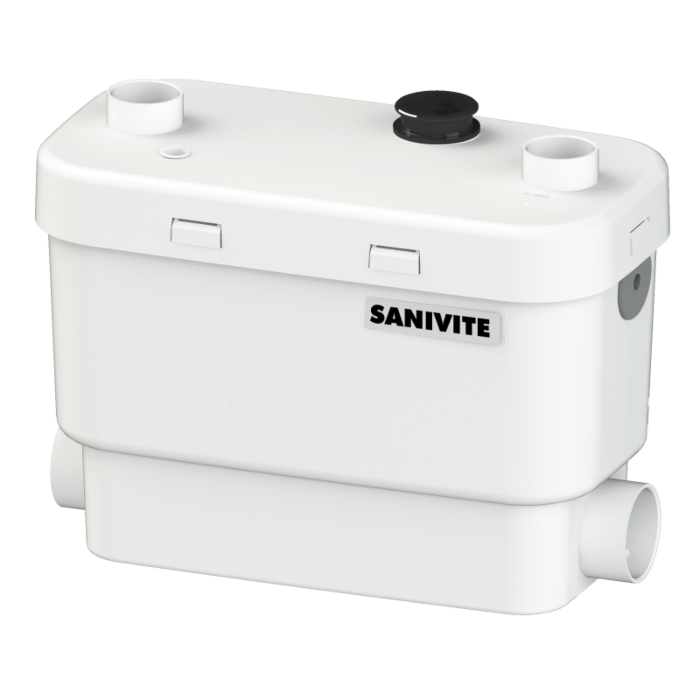

120 V 4.5 A 60 Hz Drain Pump

The Sanivite drain pump is used to pump gray water away from a variety of fixtures in commercial and residential applications. The system is able to discharge the waste up to 16 feet vertical and/or 150 feet horizontal. This model is small enough to fit inside a kitchen cabinet and was designed to sustain the toughest applications as it is capable of handling hot water and grease. The Sanivite model was designed to sustain the toughest applications meant for drain pumps. Its pumping capabilities and unique design are the reason why these range of pumps are preferred for heavy duty applications. The inside of the Sanivite is comprised of a pressure chamber, which starts and stops the unit and the motor, which drives the pump. When the water enters the Sanivite, it activates a micro switch in the pressure chamber, which in turn starts the motor. The motor is sealed for life in an oil filled enclosure. A spindle/shaft drives the impeller and therefore the moving parts are kept to an absolute minimum. Water enters the chamber and is pumped away into the sanitary sewer. The unit pumps the effluent upward to 16 feet and/or 150 feet horizontally (with gravity fall). Once the water is discharged and the water level in the container goes down, the micro switch deactivates the unit until water enters the unit again. A normal operating cycle for the Sanivite can be as short as 2 - 10 seconds depending upon the discharge pipe run configuration; power consumption is therefore minimal. In addition to a sink, the Sanivite will also accept and discharge the waste water from a variety of other sanitary fixtures such as a shower, a bathtub, a urinal and a whirlpool. When adding a bathtub or shower, a base will have to be constructed. This base should be made out of a 2 in x 6 in (minimum) or 2 in x 8 in (recommended) on edge, to allow for the installation of a P-trap and the required 1/4 inper foot gravity flow towards the pump unit.

• For commercial or residential applications
• Low inlets for easy installation
• Perfect quiet solution
• Capability to handle hot water and grease buildup
