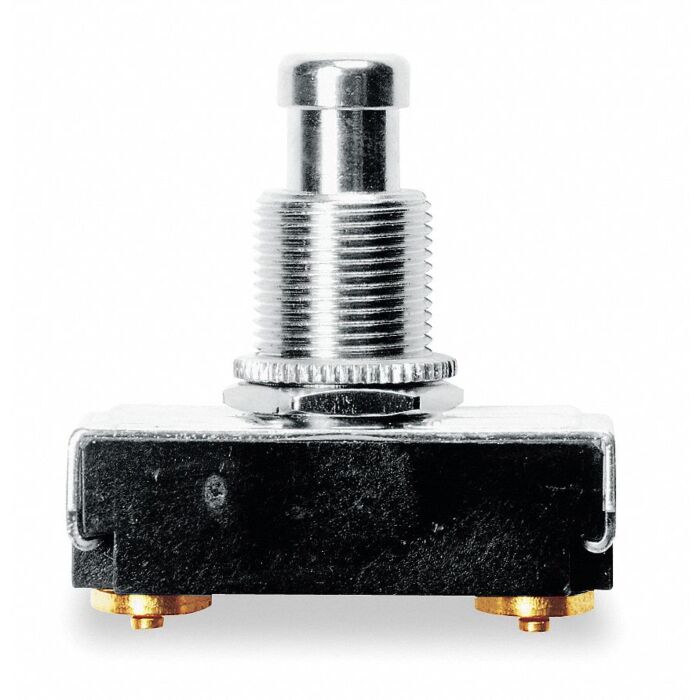

10-15 A 125-250 VAC SPST Miniature Push Button Switch
SKU: 2X901
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$12.49
Features
Specifications
The 170/172-Series pushbutton switches are single pole, high amperage switches suitable for shallow back panel applications. These switches are momentary action and require an actuation force of 2.5 lb The 170/172-Series switches are equipped with a slow-make, slow-break contact mechanism and are rated at 15 amps at 125VAC.
| Store Location (Lititz, PA) | Aisle 08, Section D5 |
|---|---|
| Package Length (in) | 4.20" |
| Package Width (in) | 3.00" |
| Package Height (in) | 0.20" |
| Type | Miniature |
| Current Rating | 10-15 A |
| Voltage Rating | 125-250 VAC |
| Contact Configuration | SPST |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Temperature Rating | 32-185 deg F |
| Application | Test and Measurement, Meters, Horns |
