ATP

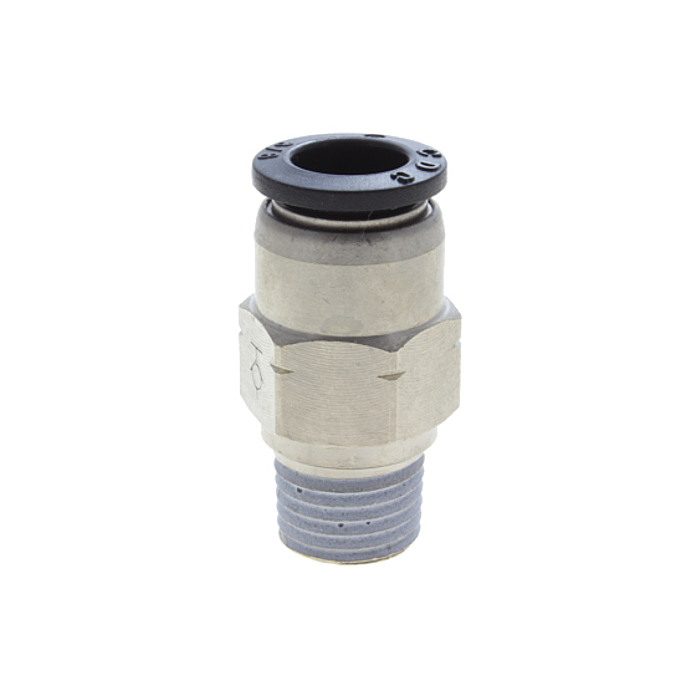

Hex Male Straight Fitting - 1/2 in. x 3/8 in. MNPT
SKU: W68LF86
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$15.99
Features
Specifications
Hex Male Straight Fittings feature a hex outer shape, allowing for simplified installation. These fittings are composed of nickel-plated brass with an acetal plastic release ring.
- Nitrile D-seal provides a positive seal on the O.D. of the tube, in both static and dynamic positions
- 100% leak tested in production
- Corrosion and chemical resistance
- Pre-applied thread sealant
| Brand | ATP |
|---|---|
| UPC | 029292370110 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 1.80" |
| Package Width (in) | 0.80" |
| Package Height (in) | 0.40" |
| Manufacturer Part Number | PC1/2-N3 |
| Fitting Size | 3/8" |
| Connection Type | MPT |
| Pressure Rating | 290 psi |
| Material | Nitrile Seal/Stainless Steel Ring/Polyurethane 95 Durometer, Fluoropolymer |
| Temperature Rating | -20 to 175 deg F |
| Outside Diameter | 1/2" Tubing |
| Application | Pneumatics, Packaging, Textile, Vacuum, Semi-Conductors and Robotics |
