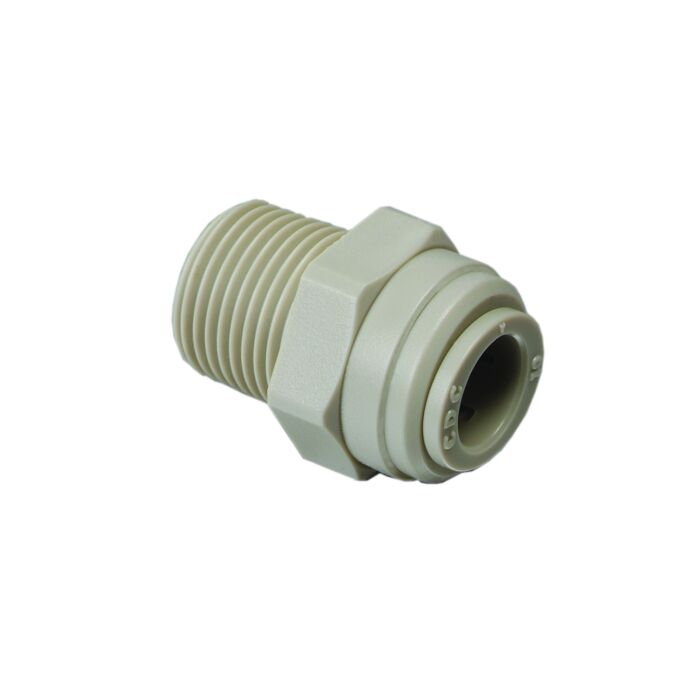

Hex Male Straight Fittings feature a hex outer shape, allowing for simplified
installation.
- NSF 51 Certified for use with food & beverage equipment
- NSF 61 Certified for use with potable/drinking water
| Brand | ATP |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.40" |
| Package Height (in) | 1.00" |
| Manufacturer Part Number | HPC3/8-N01 |
| Country of Origin | United States |
| Division | Fluid System Connectors Division |
| Minimum Operating Temperature | -20 °F | -29 °C |
| Maximum Operating Temperature | 180 °F | 82.2 °C |
| Specifications Met | FDA | NSF/ANSI/CAN 61 | NSF/ANSI 51 |
| Maximum Operating Pressure | 300 psi | 20 bar |
| O-Ring Material | EPDM |
| Connection 1 Size | 3/8" |
| Body Material | Acetal |
| Color | Gray |
| Connection 1 Type | Push-to-Connect |
| Configuration | Tube to Pipe |
| Connection 2 Size | 1/8" |
| Connection 2 Type | Male NPT |
| Product Style | Connector |
