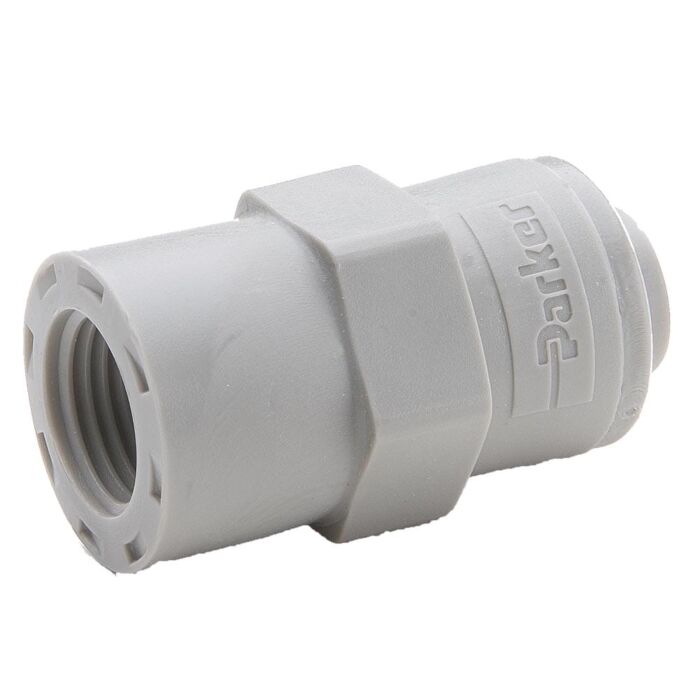

Parker’s TrueSeal thermoplastic push fit fittings are lightweight, field attachable and quickly connect to tubing without the use of tools. TrueSeal is a robust push-to-connect fitting ideal for water treatment and harsh chemical environments. Available in Acetal, Polypropylene and Kynar, TrueSeal fittings offer FDA and NSF 51 compliance; NSF 61 compliance in gray Acetal. TrueSeal in Acetal and Polypropylene has an EPDM seal, Kynar has a fluorocarbon seal. The gripping ring in TrueSeal is available with either a stainless-steel bite edge or an engineered thermoplastic bite edge.
- Gripping teeth available in stainless steel or with and engineered thermoplastic bite edge
- Engineered O-ring increases seal compression on tube
- Acetal, Polypropylene and Kynar body material
- Push button release
Brand | Parker |
---|---|
Store Location (Lititz, PA) | Aisle 11, Section H3 |
Package Length (in) | 1.80" |
Package Width (in) | 1.40" |
Package Height (in) | 0.60" |
Manufacturer Part Number | A6FA7-MG |
Fitting Size | 7/16-24 U |
Pressure Rating | 300 psi |
Material | Polyethylene, Polypropylene, Nylon, Vinyl, Fluoropolymer Tube/EPDM O-ring |
Color | Gray |
Temperature Rating | -20 to 180 deg F |
Outside Diameter | 3/8 in Tube |
