ATP

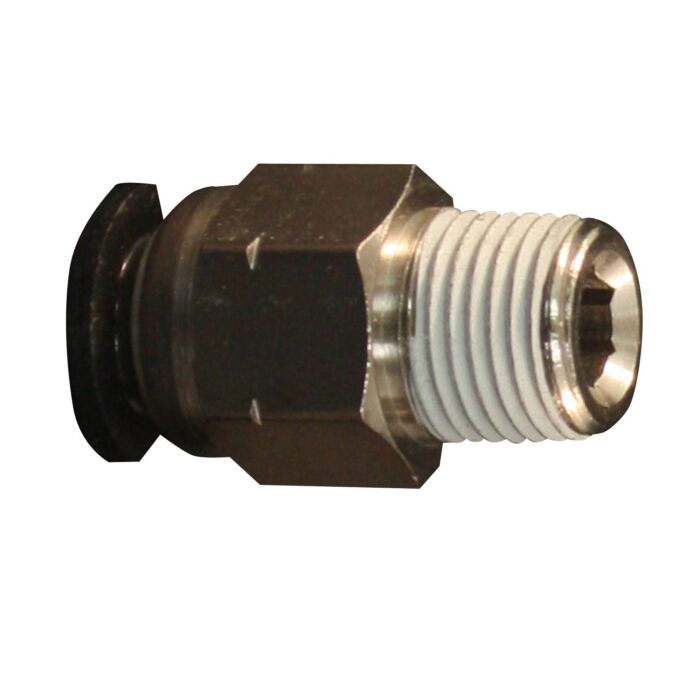

Push to Connect Adapter
Push to Connect Adapter - 1/4 in. OD x 1/8 in. MPT
Push to Connect Adapter - 3/8 in. OD x 1/8 in. MPT
Push to Connect Adapter - 1/4 in. OD x 1/4 in. MPT
Push to Connect Adapter - 5/16 in. OD x 1/4 in. MPT
Push to Connect Adapter - 3/8 in. OD x 1/4 in. MPT
Push to Connect Adapter - 3/8 in. OD x 3/8 in. MPT
Push to Connect Adapter - 1/4 in. OD x 3/8 in. MPT
Push to Connect Adapter - 3/8 in. OD x 1/2 in. MPT
Push to Connect Adapter - 1/2 in. OD x 1/2 in. MPT
SKU: M2200-
SKU: M22002
SKU: M22008
SKU: M220030
SKU: M22006
SKU: M22009X
SKU: M220010
SKU: M22004
SKU: M220011
SKU: M220014
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$2.29
As low as:
- save
Features
Specifications
Nylon push to connect tube fittings offer easy installation of air lines. Simply push tubing into fitting, no gluing or special tools required. This reusable connector has a 5/16 in OD. Reusable by simply pushing sleeve in and release the tubing. Great for garage or shop, this fitting has a maximum working pressure of 150 PSI and comes with a Buna-N seal.Push to Connect Adapter.
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
1/8 in MNPT push to connect tube fittings offer easy installation of air lines. Simply push 1/4 in OD tubing into fitting, no gluing or special tools required. Reusable by simply pushing sleeve in and releasing tubing. Great for garage or shop, push to connect fittings allow for Maximum air flow and faster connection than standard compression fittings.
- 1/8 in male national pipe thread
- 1/4 in outside diameter
- Maximum working pressure of 150 pounds per square inch
- Maximum temperature at installation of 32 degrees Fahrenheit to 140 degrees Fahrenheit
- Buna-N seal
1/8 in MNPT nylon push to connect tube fittings offer easy installation of air lines. Simply push tubing into fitting, no gluing or special tools required. This reusable connector has a 3/8 in OD. Reusable by simply pushing sleeve in and release the tubing. Great for garage or shop, this fitting has a Maximum working pressure of 150 PSI and comes with a Buna-N seal.
- 1/8 in male national pipe thread
- 3/8 in outside diameter
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
Nylon push to connect tube fittings offer easy installation of air lines; simply push tubing into fitting. No gluing or special tools needed for this 1/4 in OD x 1/4 in MNPT connector. These push to connect fittings are even reusable by simply pushing sleeve in and releasing the tubing. Great for garage or shop, these fittings allow for Maximum air flow and faster connection than standard compression fittings. Maximum working pressure of 150 PSI.
- Temperature range at installation of 32 degrees Fahrenheit to 140 degrees Fahrenheit
- 1/4 in outside diameter
- 1/4 in Male national pipe thread
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
1/4 in MNPT nylon push to connect tube fittings offer easy installation of air lines. Simply push tubing into fitting, no gluing or special tools required. This reusable connector has a 5/16 in OD. Reusable by simply pushing sleeve in and release the tubing. Great for garage or shop, this fitting has a maximum working pressure of 150 PSI and comes with a Buna-N seal.
- 1/4 in male national pipe thread
- 5/16 in outside diameter
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
1/4 in MNPT Nylon push to connect fittings offer easy installation of air lines; simply push tubing into fitting. No gluing or special tools required. Reusable by simply pushing sleeve in and releasing the tubing.
- 1/4 in Male national pipe threads
- 3/8 in hose outside diameter
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
3/8 in MNPT Nylon push to connect fittings offer easy installation of air lines; simply push tubing into fitting. No gluing or special tools required. Push to connect fittings allow for Maximum air flow and faster connection than standard compression fittings. Reusable by simply pushing sleeve in and releasing the tubing.
- 3/8 in male national pipe threads
- 3/8 in hose outside diameter
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
3/8 in MNPT nylon push to connect tube fittings offer easy installation of air lines. Simply push tubing into fitting, no gluing or special tools required. This reusable connector has a 1/4 in OD. Reusable by simply pushing sleeve in and release the tubing. Great for garage or shop, this fitting has a Maximum working pressure of 150 PSI and comes with a Buna-N seal.
- 3/8 in Male national pipe thread
- 1/4 in outside diameter
- Temperature range at installation of 32 degrees Fahrenheit to 140 degrees Fahrenheit
- Buna-N seal
1/2 in MNPT nylon push to connect straight tube fittings offer easy installation of air lines. Simply push tube into fitting, no gluing or special tools required. Reusable by simply pushing sleeve in and releasing tubing. Great for the garage or shop, push to connect fittings have a 3/8 in OD and a maximum working pressure of 150 PSI.
- 1/2 in male national pipe thread
- 3/8 in outside diameter
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
1/2 in MNPT nylon push to connect straight tube fittings offer easy installation of air lines. Simply push tube into fitting, no gluing or special tools required. Reusable by simply pushing sleeve in and releasing tubing. Great for the garage or shop, push to connect fittings have a 1/2 in OD and a Maximum working pressure of 150 PSI.
- 1/2 in male national pipe thread
- 1/2 in outside diameter
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
| Brand | ATP |
|---|---|
| UPC | 030937309891 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 0.50" |
| Package Width (in) | 0.50" |
| Package Height (in) | 1.00" |
| Manufacturer Part Number | PC1/4-N1 |
| Fitting Size | 1/8 in |
| Connection Type | MNPT |
| Pressure Rating | 150 psi |
| Material | Brass/Metal |
| Temperature Rating | 32-140 deg F |
| Outside Diameter | 1/4 in Tubing |
| Dimensions | 0.5 in W x 0.94 in L x 0.5 in H |
| Brand | ATP |
|---|---|
| UPC | 030937309891 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 0.50" |
| Package Width (in) | 0.50" |
| Package Height (in) | 1.00" |
| Manufacturer Part Number | PC1/4-N1 |
| Fitting Size | 1/8 in |
| Connection Type | MNPT |
| Pressure Rating | 150 psi |
| Material | Brass/Metal |
| Temperature Rating | 32-140 deg F |
| Outside Diameter | 1/4 in Tubing |
| Dimensions | 0.5 in W x 0.94 in L x 0.5 in H |
| Brand | ATP |
|---|---|
| UPC | 030937309952 |
| Store Location (Lititz, PA) | Aisle 11, Section H4 |
| Package Length (in) | 0.75" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.75" |
| Manufacturer Part Number | PC3/8-N1 |
| Fitting Size | 1/8 in |
| Connection Type | MNPT |
| Pressure Rating | 150 psi |
| Material | Brass/Metal |
| Temperature Rating | 32-140 deg F |
| Outside Diameter | 1/8 in Tubing |
| Dimensions | 0.75 in W x 1.1875 in L x 0.75 in H |
| Brand | ATP |
|---|---|
| UPC | 030937309907 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 0.50" |
| Package Width (in) | 0.50" |
| Package Height (in) | 1.00" |
| Manufacturer Part Number | PC1/4-N2 |
| Fitting Size | 1/4 in |
| Connection Type | MNPT |
| Pressure Rating | 150 psi |
| Material | Brass/Metal |
| Temperature Rating | 32-140 deg F |
| Outside Diameter | 1/4 in Tubing |
| Dimensions | 0.5 in W x 1 in L x 0.5 in H |
| Brand | ATP |
|---|---|
| UPC | 030937309938 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 1.20" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | PC5/16-N2 |
| Fitting Size | 1/4 in |
| Connection Type | MNPT |
| Pressure Rating | 150 psi |
| Material | Brass/Metal |
| Temperature Rating | 32-140 deg F |
| Outside Diameter | 5/16 in Tubing |
| Dimensions | 0.55 in W x 1.04 in L x 0.55 in H |
| Brand | ATP |
|---|---|
| UPC | 030937309891 |
| Store Location (Lititz, PA) | Aisle 11, Section H4 |
| Package Length (in) | 0.75" |
| Package Width (in) | 0.75" |
| Package Height (in) | 1.25" |
| Manufacturer Part Number | PC3/8-N2 |
| Fitting Size | 1/4 in |
| Connection Type | MNPT |
| Pressure Rating | 150 psi |
| Material | Brass/Metal |
| Temperature Rating | 32-140 deg F |
| Outside Diameter | 3/8 in Tubing |
| Dimensions | 0.69 in W x 1.22 in L x 0.69 in H |
| Brand | ATP |
|---|---|
| UPC | 030937309976 |
| Store Location (Lititz, PA) | Aisle 11, Section H4 |
| Package Length (in) | 1.40" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | PC3/8-N3 |
| Fitting Size | 3/8 in |
| Connection Type | MNPT |
| Pressure Rating | 150 psi |
| Material | Brass/Metal |
| Temperature Rating | 32-140 deg F |
| Outside Diameter | 3/8 in Tubing |
| Dimensions | 0.69 in W x 1.09 in L x 0.69 in H |
| Brand | ATP |
|---|---|
| UPC | 030937309914 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 0.75" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.75" |
| Manufacturer Part Number | 2200-4 |
| Fitting Size | 3/8 in |
| Connection Type | MNPT |
| Pressure Rating | 150 psi |
| Material | Brass/Metal |
| Temperature Rating | 32-140 deg F |
| Outside Diameter | 1/4 in Tubing |
| Dimensions | 0.75 in W x 1 in L x 0.75 in H |
| Brand | ATP |
|---|---|
| UPC | 030937309983 |
| Store Location (Lititz, PA) | Aisle 11, Section H4 |
| Package Length (in) | 1.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.40" |
| Manufacturer Part Number | PC3/8-N4 |
| Fitting Size | 1/2 in |
| Connection Type | MNPT |
| Pressure Rating | 150 psi |
| Material | Brass/Metal |
| Temperature Rating | 32-140 deg F |
| Outside Diameter | 3/8 in Tubing |
| Dimensions | 0.875 in W x 1.125 in L x 0.875 in H |
| Brand | ATP |
|---|---|
| UPC | 030937310019 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 1.20" |
| Package Width (in) | 0.80" |
| Package Height (in) | 0.40" |
| Manufacturer Part Number | PC1/2-N4 |
| Fitting Size | 1/2 in |
| Connection Type | MNPT |
| Pressure Rating | 150 psi |
| Material | Brass/Metal |
| Temperature Rating | 32-140 deg F |
| Outside Diameter | 1/2 in Tubing |
| Dimensions | 0.875 in W x 1.25 in L x 0.875 in H |
