Features
Specifications

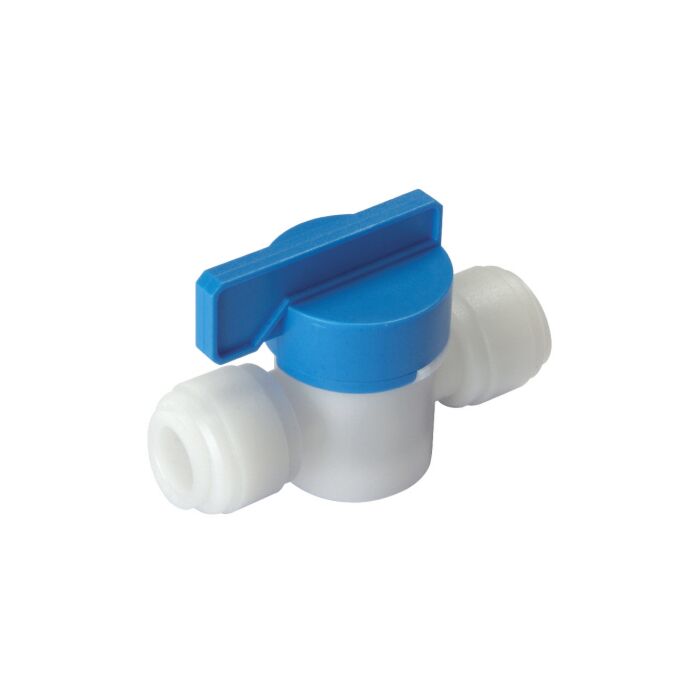

Parker's polypropylene ball valves save cost with built-in LIQUIfit, TrueSeal and Par-Barb connections eliminating the need for a secondary fitting. The compact design allows for easy assembly and access where space is at a premium. Polypropylene ball valves meets all FDA and NSF-51 requirements for food contact.
- Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting
- Low-profile design allows for easy assembly and access where space is limited
- Bi-directional flow foe maximum productivity
- Meets FDA and NSF-51 requirements for food contact
- Wide chemical acceptance range
- Push-to-Connect and barbed connections
Brand | Parker |
---|---|
Store Location (Lititz, PA) | Aisle 11, Section H3 |
Package Length (in) | 2.00" |
Package Width (in) | 1.60" |
Package Height (in) | 0.60" |
Manufacturer Part Number | PP4VUC4-MG |
Nominal Size | 1/4 in |
Connection Type | Push-to-Connect x NPTF |
Configuration | Tube x Tube |
Pressure Rating | 150 psi/10 bar |
Orifice Size | 0.19 in |
Number of Ports/Ways | 2 |
Operator Type | Lever |
Mounting Type | In-Line/Bodies, Panel |
Body Material | Polypropylene |
Seat Material | EPDM |
Seal Material | EPDM |
Ball Material | Polysulfone |
Temperature Rating | 35-225 deg F |
