Push to Connect Swivel Elbow - SAE x MPT
Push to Connect Swivel Elbow - 1/4 in. OD X 1/8 in. MPT
Push to Connect Swivel Elbow - 3/8 in. OD X 1/8 in. MPT
Push to Connect Swivel Elbow - 1/4 in. OD X 1/4 in. MPT
Push to Connect Swivel Elbow - 3/8 in. OD X 1/4 in. MPT
Push to Connect Swivel Elbow - 1/2 in. OD X 1/2 in. MPT
Push to Connect Swivel Elbow - 1/2 in. OD X 3/8 in. MPT
Push to Connect Swivel Elbow - 3/8 in. OD x 3/8 in. MPT
Push to Connect Swivel Elbow - 1/4 in. OD X 3/8 in. MPT
SKU: M2202-
SKU: M22022
SKU: CL690602S
SKU: M22023
SKU: M22029
SKU: M220214
SKU: M220213
SKU: M220210
SKU: M22024
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$2.79
As low as:
- save
Features
Specifications
Nylon push to connect elbow fittings offer easy installation of air lines. Simply push tubing into fitting, no gluing or special tools required. This 1/4 in OD connector is reusable by simply pushing sleeve in and releasing the tubing. Push to connect fittings allow for Maximum air flow and faster connection than standard compression fittings. Great for the garage or shop, these swivel elbow fittings pivot 360 degrees Fahrenheit or easy installation and use.
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
1/8 in MNPT nylon push to connect elbow fittings offer easy installation of air lines. Simply push tubing into fitting, no gluing or special tools required. This 1/4 in OD connector is reusable by simply pushing sleeve in and releasing the tubing. Push to connect fittings allow for Maximum air flow and faster connection than standard compression fittings. Great for the garage or shop, these swivel elbow fittings pivot 360 degrees Fahrenheit or easy installation and use.
- 1/8 in male national pipe thread
- 1/4 in outside diameter
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal

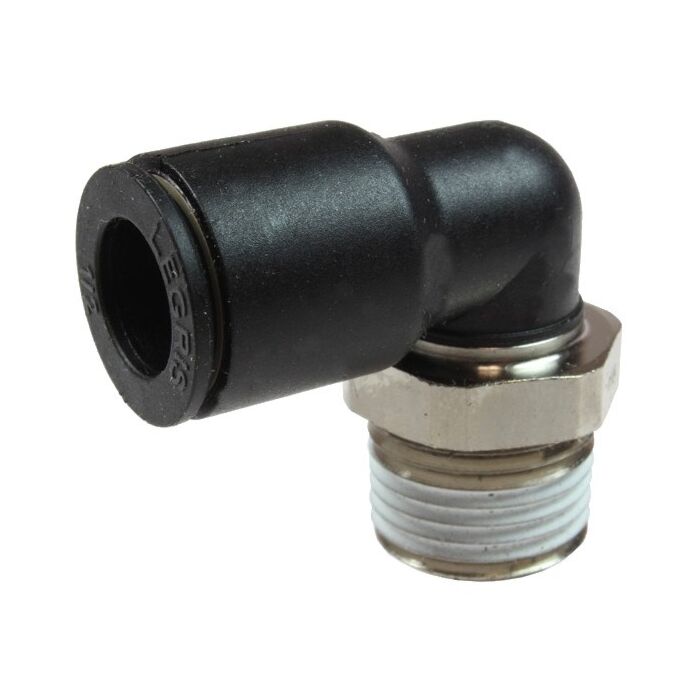

Coilock Male Swivel Elbow, 3/8" OD x 1/8" MPT
1/4 in MNPT nylon push to connect elbow fittings offer easy installation of air lines. Simply push tubing into fitting, no gluing or special tools required. This 1/4 in OD connector is reusable by simply pushing sleeve in and releasing the tubing. Push to connect fittings allow for Maximum air flow and faster connection than standard compression fittings. Great for the garage or shop, these swivel elbow fittings pivot 360 degrees Fahrenheit or easy installation and use.
- 1/4 in male national pipe thread
- 1/4 in outside diameter
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
1/4 in MNPT nylon push to connect elbow fittings offer easy installation of air lines. Simply push tubing into fitting, no gluing or special tools required. This 3/8 in OD connector is reusable by simply pushing sleeve in and releasing the tubing. Push to connect fittings allow for Maximum air flow and faster connection than standard compression fittings. Great for the garage or shop, these swivel elbow fittings pivot 360 degrees Fahrenheit or easy installation and use.
- 1/4 in male national pipe thread
- 3/8 in outside diameter
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
1/2 in MNPT nylon push to connect elbow fittings offer easy installation of air lines. Simply push tubing into fitting, no gluing or special tools required. This 1/2 in OD connector is reusable by simply pushing sleeve in and releasing the tubing. Push to connect fittings allow for maximum air flow and faster connection than standard compression fittings. Great for the garage or shop, these swivel elbow fittings pivot 360 degrees Fahrenheit or easy installation and use.
- 1/2 in male national pipe thread
- 1/2 in outside diameter
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
3/8 in MNPT nylon push to connect elbow fittings offer easy installation of air lines. Simply push tubing into fitting, no gluing or special tools required. This 1/2 in OD connector is reusable by simply pushing sleeve in and releasing the tubing. Push to connect fittings allow for Maximum air flow and faster connection than standard compression fittings. Great for the garage or shop, these swivel elbow fittings pivot 360 degrees Fahrenheit or easy installation and use.
- 3/8 in male national pipe thread
- 1/2 in outside diameter
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
3/8 in MNPT nylon push to connect elbow fittings offer easy installation of air lines. Simply push tubing into fitting, no gluing or special tools required. This 3/8 in OD connector is reusable by simply pushing sleeve in and releasing the tubing. Push to connect fittings allow for Maximum air flow and faster connection than standard compression fittings. Great for the garage or shop, these swivel elbow fittings pivot 360 degrees Fahrenheit or easy installation and use.
- 3/8 in national pipe thread
- 3/8 in outside diameter
- Maximum working pressure of 150 pounds per square inch
- Buna-N seal
Swivel Male Elbows are configured in a 90° shape with an external hex for installation. The swivel body enables flexibility during both installation and operation.
| Brand | ATP |
|---|---|
| UPC | 030937310033 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 2.00" |
| Package Width (in) | 0.80" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | PL1/4-N1 |
| Fitting Size | 1/8 in |
| Connection Type | MNPT |
| Thread Type | NPT |
| Pressure Rating | 150 psi |
| Material | Nylon |
| Color | Black |
| Temperature Rating | 32-140 deg F |
| Dimensions | 1.05 in W x 1.37 in L x 0.55 in H |
| Brand | ATP |
|---|---|
| UPC | 030937310033 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 2.00" |
| Package Width (in) | 0.80" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | PL1/4-N1 |
| Fitting Size | 1/8 in |
| Connection Type | MNPT |
| Thread Type | NPT |
| Pressure Rating | 150 psi |
| Material | Nylon |
| Color | Black |
| Temperature Rating | 32-140 deg F |
| Dimensions | 1.05 in W x 1.37 in L x 0.55 in H |
| Brand | ATP |
|---|---|
| UPC | 029292917377 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 3.80" |
| Package Width (in) | 2.80" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | PL3/8-N1 |
| Outer Diameter | 3/8" |
| Brand | ATP |
|---|---|
| UPC | 030937310040 |
| Store Location (Lititz, PA) | Aisle 11, Section H4 |
| Package Length (in) | 1.20" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | PL1/4-N2 |
| Fitting Size | 1/4 in |
| Connection Type | MNPT |
| Thread Type | NPT |
| Pressure Rating | 150 psi |
| Material | Nylon |
| Color | Black |
| Temperature Rating | 32-140 deg F |
| Dimensions | 1 in W x 1.5 in L x 0.625 in H |
| Brand | ATP |
|---|---|
| UPC | 030937310101 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 1.80" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | PL3/8-N2 |
| Fitting Size | 1/4 in |
| Connection Type | MNPT |
| Thread Type | NPT |
| Pressure Rating | 150 psi |
| Material | Nylon |
| Color | Black |
| Temperature Rating | 32-140 deg F |
| Brand | ATP |
|---|---|
| UPC | 030937310156 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 1.40" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.40" |
| Manufacturer Part Number | PL1/2-N4 |
| Fitting Size | 1/2 in |
| Connection Type | MNPT |
| Thread Type | NPT |
| Pressure Rating | 150 psi |
| Material | Nylon |
| Color | Black |
| Temperature Rating | 32-140 deg F |
| Dimensions | 1.5 in W x 1.875 in L x 0.875 in H |
| Brand | ATP |
|---|---|
| UPC | 030937310149 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 2.20" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.40" |
| Manufacturer Part Number | PL1/2-N3 |
| Fitting Size | 3/8 in |
| Connection Type | MNPT |
| Thread Type | NPT |
| Pressure Rating | 150 psi |
| Material | Nylon |
| Color | Black |
| Temperature Rating | 32-140 deg F |
| Dimensions | 1.5 in W x 1.75 in L x 0.75 in H |
| Brand | ATP |
|---|---|
| UPC | 030937310118 |
| Store Location (Lititz, PA) | Aisle 11, Section H3 |
| Package Length (in) | 2.80" |
| Package Width (in) | 0.80" |
| Package Height (in) | 0.40" |
| Manufacturer Part Number | PL3/8-N3 |
| Fitting Size | 3/8 in |
| Connection Type | MNPT |
| Thread Type | NPT |
| Pressure Rating | 150 psi |
| Material | Nylon |
| Color | Black |
| Temperature Rating | 32-140 deg F |
| Dimensions | 1.375 in W x 1.625 in L x 0.75 in H |
| Brand | ATP |
|---|---|
| UPC | 030937310033 |
| Store Location (Lititz, PA) | Aisle 11, Section H4 |
| Package Length (in) | 1.80" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | PL3/8-N2 |
| Max Working Pressure | 150 psi |
| Temperature Range | 32ºF to 140°F |
| Vacuum Rating | 29.5" HG |
| Metal Body Material | Nickel-Plated Brass |
| Resin Body Material | PBT Resin |
| O-Ring | NBR (Buna-N) |
| Grip Ring | Stainless Steel |
| Release Ring | Acetal Plastic |
| Media | Compressed Air; Inert Gases |
