ATP

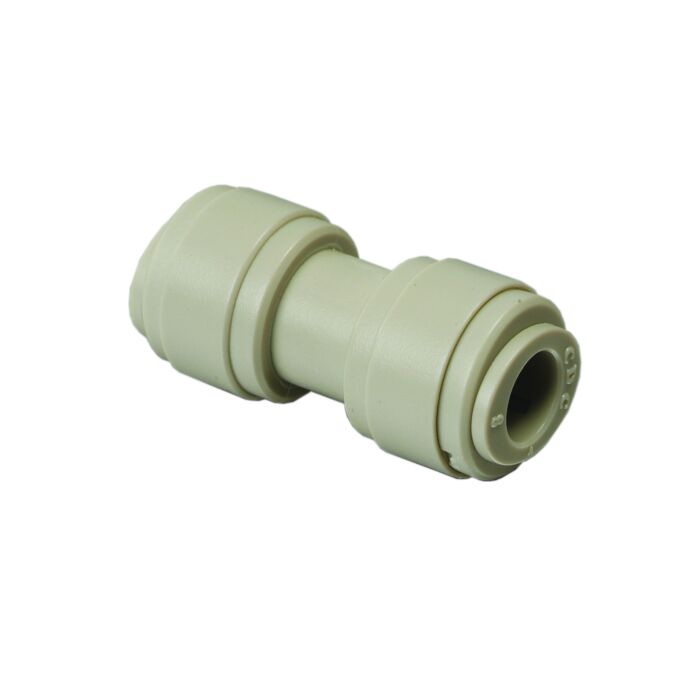

Fluidfit Union Straight & Reducer - 3/8 in. x 1/4 in.
SKU: 32PLP64
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$12.99
Features
Specifications
These pneumatic push-to-connect fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut required in compression style fittings. Simply push the tubing into the fitting until it bottoms. These quick connect pneumatic fittings are also easy to disassemble just press the release button, hold against the body and pull tubing from the fitting.
- Nitrile D-seal provides a positive seal on the O.D. of the tube, in both static and dynamic positions
- 100% leak tested in production
- Date coding to guarantee quality and traceability
- NSF 51 Certified for use with food & beverage equipment
- NSF 61 Certified for use with potable/drinking water
| Brand | ATP |
|---|---|
| Store Location (Lititz, PA) | Aisle 11, Section H4 |
| Package Length (in) | 1.80" |
| Package Width (in) | 0.80" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | HUC3/8-1/4 |
| Type | Silicone Free |
| Fitting Size | 3/8" x 1/4" |
| Pressure Rating | 290 psi |
| Material | Stainless Steel/Nylon/Nitrile |
| Temperature Rating | 80-175 deg F |
| Application | Pneumatics, Packaging, Textile, Vacuum, Semi-Conductors, Robotics |
