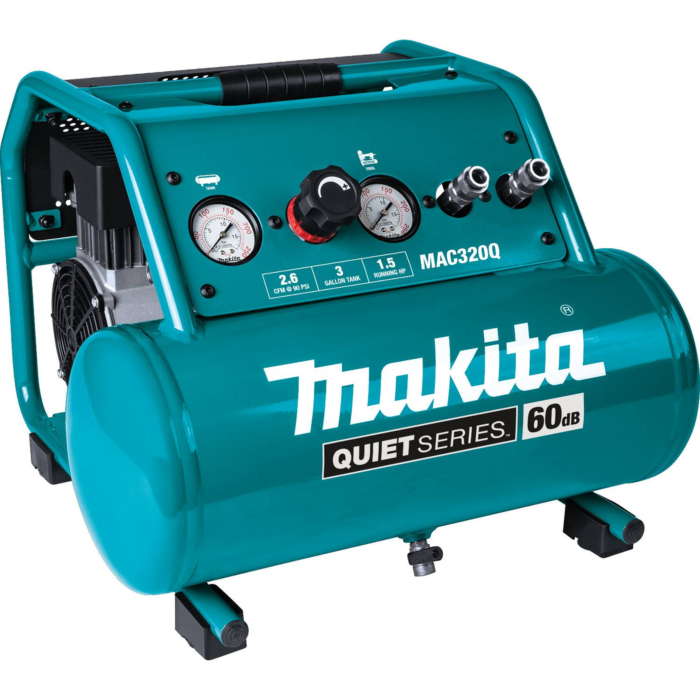

Compressors are workhorse tools on the job site and in the work shop. Makita® Air Compressors are favorites for their faster recovery time, lower noise, longer tool life, and consistent performance. The Makita® Quiet Series 1-1/2 HP, 3 Gallon, Oil-Free, Electric Air Compressor (MAC320Q) features a Quiet Series Design, combining strong performance with lower noise. At only 60 dBA, it’s ideal for indoor use during case and base installation, trim and finish carpentry, cabinet or furniture making, and more. The MAC320Q runs at a lower RPM, resulting in longer motor and pump life. It is powered by an efficient 1-1/2 horsepower induction motor that provides up to 90 PSI. It also features a lightweight design (only 52.5 lbs.) for increased portability. The roll-cage construction provides added protection for the pump and motor assembly during transportation, in storage, and on the job site. Additional features include a low AMP draw that reduces the incidents of tripped breakers at start-up, an oil-free dual-piston pump designed for maintenance-free operation, and hooks for convenient AC power cord storage.
- Cord wrap for convenient AC power cord storage
- DESIGN - Complete roll-cage construction design
- Ideal for case and base installation, trim and finish carpentry, cabinet and furniture makers, and more
- CONVENIENCE - Cord wrap for convenient AC power cord storage
- Low AMP draw reduces incidents of tripped breakers at start-up
- Large pressure gauges for easier visibility of tank and hose pressure
- Powerful 1-1/2 HP induction motor provides 2.6 CFM at 90 PSI with a maximum tank pressure of 135 PSI
- Runs at a lower RPM (1,750) resulting in longer motor and pump life
- Lever-handle tank drain for easy air tank release
- Quiet Series design at only 60 dB for operator and crew comfort; ideal for indoor use
- 2 1/4" Universal Quick Coupler, Male (447013-E)
- Quick 65 second full tank fill time from empty
- Complete roll-cage construction provides protection to withstand a variety of job-site, transporting, and storage environments
- Built-in thermal overload for additional motor protection
- Lightweight design for increased job site portability
- Quick 65 second full tank fill from empty
- INCLUDES - Universal Couplers (2)
- COMFORT - Quiet Series design at only 60 dB
- EFFICIENCY - Lever-handle tank drain for easy air tank release
- Oil-free dual-piston pump designed for maintenance-free operation
- WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
| Brand | Makita |
|---|---|
| UPC | 088381897518 |
| Store Location (Lititz, PA) | Aisle 30, Section M4 |
| Package Length (in) | 19.09" |
| Package Width (in) | 20.08" |
| Package Height (in) | 15.08" |
| Manufacturer Part Number | MAC320Q |
| Country of Origin | China |
| Maximum Pressure | 135 PSI |
| Tank | 3 gal. |
| Net Weight | 52.5 lbs. |
| Dimensions (LxWxH) | 18" x 19" x 13-3/4" |
| Running Horsepower | 1-1/2 HP |
| Pump Type | Oil-Free |
| Performance (40 PSI) | 3.5 CFM |
| Motor | 1-1/2 HP |
| Shipping Weight | 56.82 lbs. |
| AMPS | 8.5 |
| UPC Code | 088381-897518 |
| Performance (90 PSI) | 2.6 CFM |
