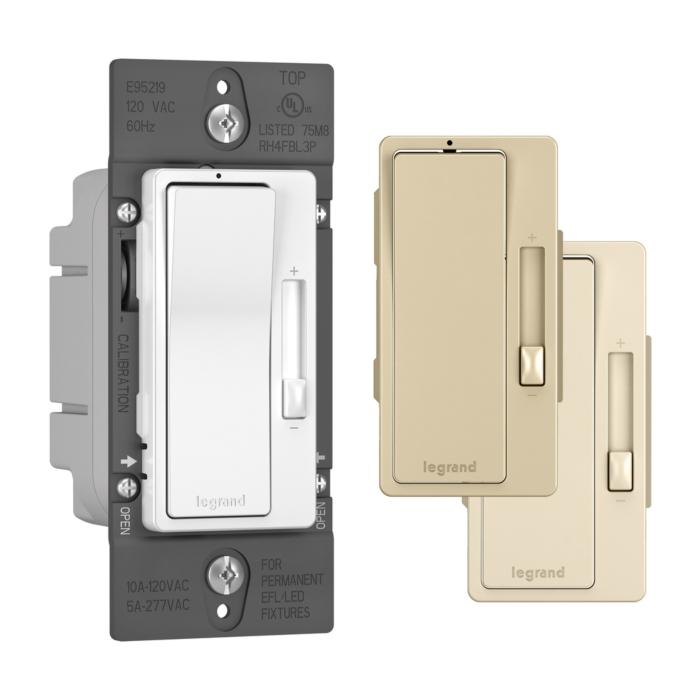

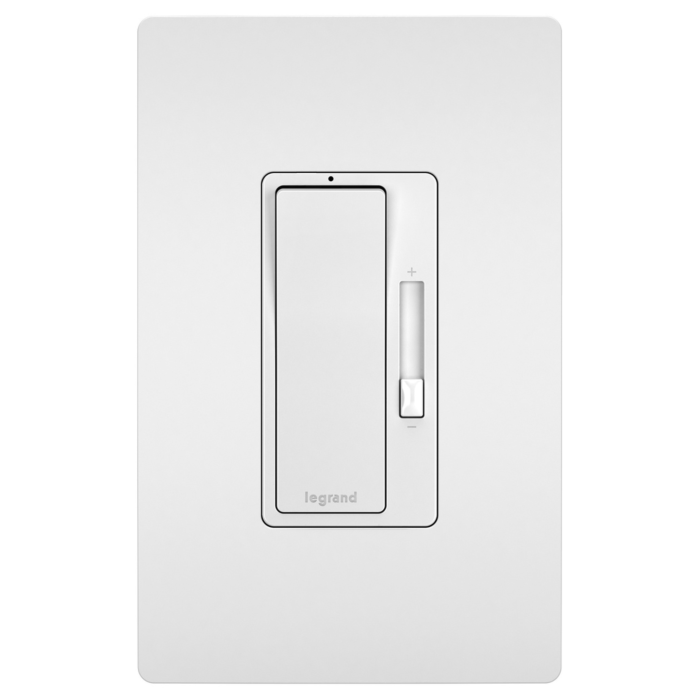

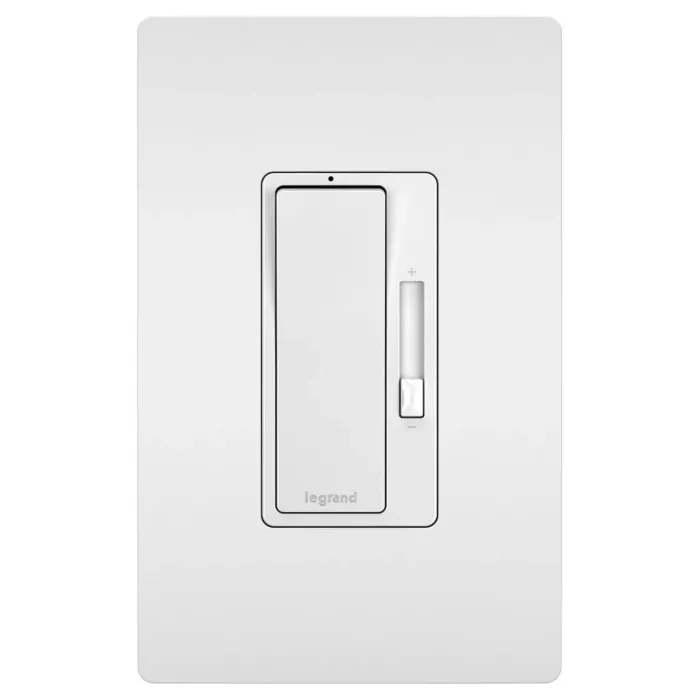

radiant® 0-10V LED/Fluorescent Dimmer
SKU: RH4FBL3PTC
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$74.99
Features
Specifications
Downloads
Upgrade your space with precise dimming control and exceptional style. The radiant® 0-10V Dimmer works with low-voltage fluorescent and LED fixtures, allowing you to set the perfect light level for your space with efficiency and ease. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
- Replaces any basic switch or dimmer with ease, in both single-pole and 3-way applications. For use with 0-10V, 4-wire, 120V 10A/277V 5A LED and fluorescent lighting.
- Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Constant memory features returns lights to their previous level after a power failure or outage.
- No derating* required for 2-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
- Features durable, high-impact resistant thermoplastic construction.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
- UL Listed
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007053319 |
| Store Location (Lititz, PA) | Aisle 09, Section D2 |
| Package Length (in) | 1.25" |
| Package Width (in) | 1.75" |
| Package Height (in) | 4.25" |
| Manufacturer Part Number | RH4FBL3PTCCCV6 |
| Depth | 1.25 in |
| Height | 4.25 in |
| Preset | Yes |
| Width | 1.75 in |
| Type | Dimmer |
| Country of Origin | China |
| Load Type | Fluorescent |
| Standard | CSA Listed |
| Switch Type | Slider |
| Voltage | 120/277 VAC |
| Indoor/Outdoor | Indoor |
| Frequency Rating | 60 Hz |
| Mounting Type | Wall Box |
| Number of Switches | 1.0 |
| Wire Size | #14 - #10 AWG |
| Compatible Add-Ons | RHKIT |
| Requires Neutral Wire | No |
| Features | Low-End Trim (Dim Range) |
| Load Rating | 120V 10A (Fluorescent) |
| Dimming Compatibility | 0-10 V |
| Application Sector | Residential |
| Number of Poles | Single Pole 3-Way |
| Wire Connection Type | Flying Leads |
| Special Features | The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. This dimmer is multi-location dimming with 3-Way wiring for simple installation. |
| Warranty Type | Limited Lifetime Warranty |
| Jigsaw Channel Availability | Distribution |
| Maximum Humidity | 95% (relative humidity, non-condensing) |
| Color | Ivory,Light Almond,White |
| Finish | Matte |
| Material | Steel,Thermoplastic |
| Product Line | Pass & Seymour |
| Environmental Conditions | Humidity: Less than 95% non condensing |
