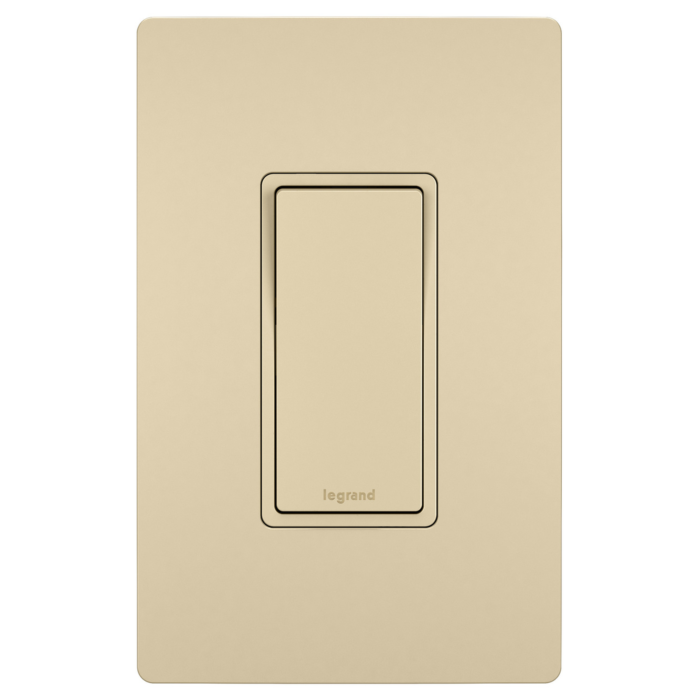

radiant® 15A 4-Way Switch, Ivory
SKU: TM874I
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$16.99
Features
Specifications
Downloads
For your largest or most open spaces, a radiant® 4-Way Switch enables control of a single light or fixture from three or more separate locations (working in conjunction with 3-Way Switches). Perfect for basements or multi-level rooms. Part of the radiant Collection, it features clean lines and smooth paddle action for a sophisticated touch.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
- Replaces any standard switch with ease, in as little as 10 minutes
- Uses a paddle switch for smoother control with a low-profile aesthetic
- Features durable, high-impact resistant thermoplastic construction
- Designed to install easily with a narrower back body and captivated mounting screws
- More color options available to fit any style, including finishes to match current hardware and lighting trends
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection
- Back and side wire termination options accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007857559 |
| Store Location (Lititz, PA) | Aisle 09, Section D4 |
| Package Length (in) | 1.75" |
| Package Width (in) | 1.75" |
| Package Height (in) | 1.75" |
| Manufacturer Part Number | TM874ICC6 |
| Depth | 1.27 in |
| Type | Switch |
| Height | 4.19 in |
| Load Type | Incandescent |
| Width | 1.43 in |
| Country of Origin | Mexico |
| Amperage | 15.0 A |
| Voltage | 125 VAC |
| Switch Type | Paddle |
| Number of Gangs | 1.0 |
| Indoor/Outdoor | Indoor |
| Number of Poles | 4-Way |
| Mounting Type | Wall Box |
| Number of Switches | 1.0 |
| Wall Plate Included | No |
| Throw Type | Single Throw |
| Features | Decorator Style |
| Requires Neutral Wire | Yes |
| Load Rating | 15 A @ 120 VAC |
| Application Sector | Residential |
| Wire Connection Type | Wire Terminal |
| Connection Location | Back and Side |
| Jigsaw Channel Availability | Retail |
| Warranty Type | 1-Year Limited Warranty |
| Terminal Accommodation | #14 AWG - #10 AWG |
| Color | Ivory |
| Finish | Satin |
| Material | Thermoplastic |
| Product Line | Pass & Seymour |
