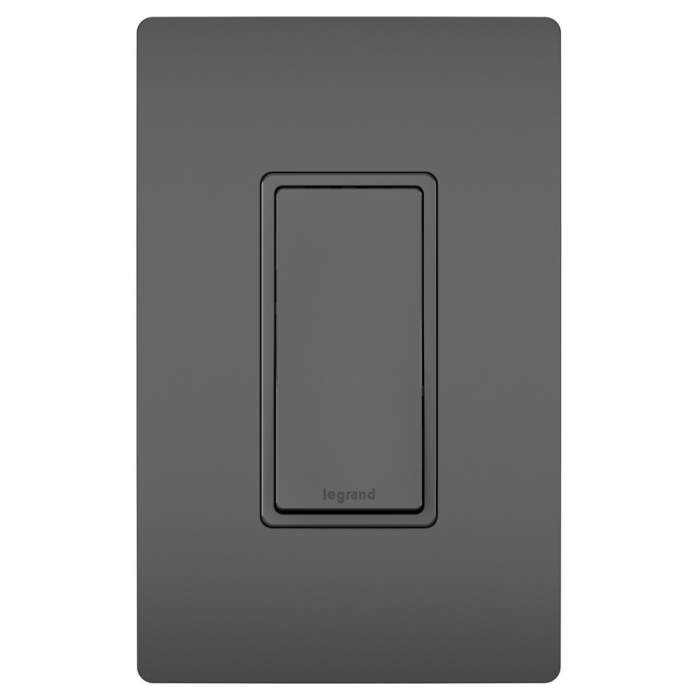

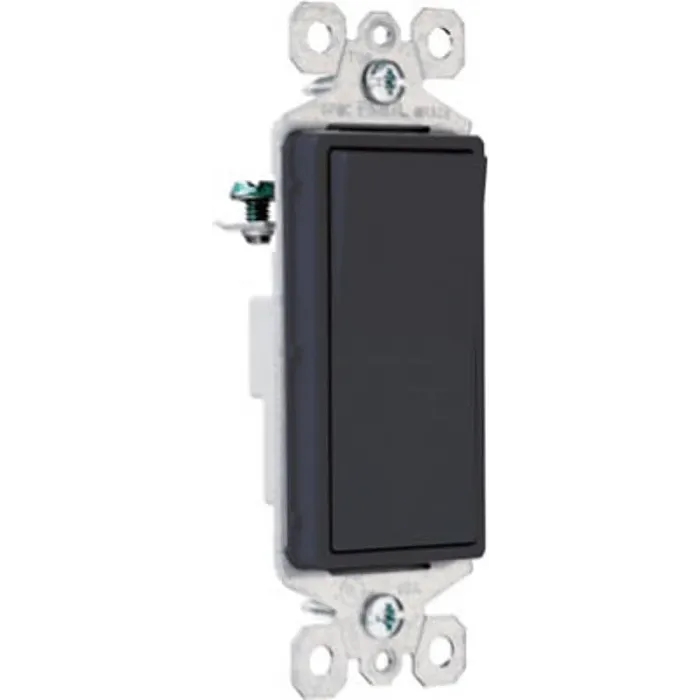

radiant® 15A Single-Pole Switch, Black
SKU: TM870BK
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$3.49
Features
Specifications
The perfect upgrade for your basic light switch, the Single-Pole Switch from the radiant® Collection provides on/off control of a light or fixture from a single location, while combining clean lines and smooth paddle action for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
- Replaces any standard switch with ease, in as little as 10 minutes
- Uses a paddle switch for smoother control with a low-profile aesthetic
- Features durable, high-impact resistant thermoplastic construction
- Designed to install easily with a narrower back body and captivated mounting screws
- More color options available to fit any style, including finishes to match current hardware and lighting trends
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection
- Back and side wire termination options accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007856422 |
| Store Location (Lititz, PA) | Aisle 09, Section D4 |
| Package Length (in) | 1.63" |
| Package Width (in) | 1.50" |
| Package Height (in) | 1.50" |
| Manufacturer Part Number | TM870BKCC10 |
| Depth | 1.27 in |
| Height | 4.19 in |
| Color | Black |
| Finish | Satin |
| Width | 1.43 in |
| Country of Origin | China |
| Material | Thermoplastic |
| Product Line | Pass & Seymour |
| Type | Switch |
| Load Type | Incandescent |
| Amperage | 15.0 A |
| Voltage | 125 VAC |
| Switch Type | Paddle |
| Number of Gangs | 1.0 |
| Indoor/Outdoor | Indoor |
| Mounting Type | Wall Box |
| Number of Switches | 1.0 |
| Wall Plate Included | No |
| Throw Type | Single Throw |
| Features | Decorator Style |
| Requires Neutral Wire | No |
| Load Rating | 15 A @ 120 VAC |
| Number of Poles | Single Pole |
| Application Sector | Residential |
| Wire Connection Type | Wire Terminal |
| Connection Location | Back and Side |
| Jigsaw Channel Availability | Retail |
| Warranty Type | 1-Year Limited Warranty |
| Terminal Accommodation | #14 AWG - #10 AWG |
