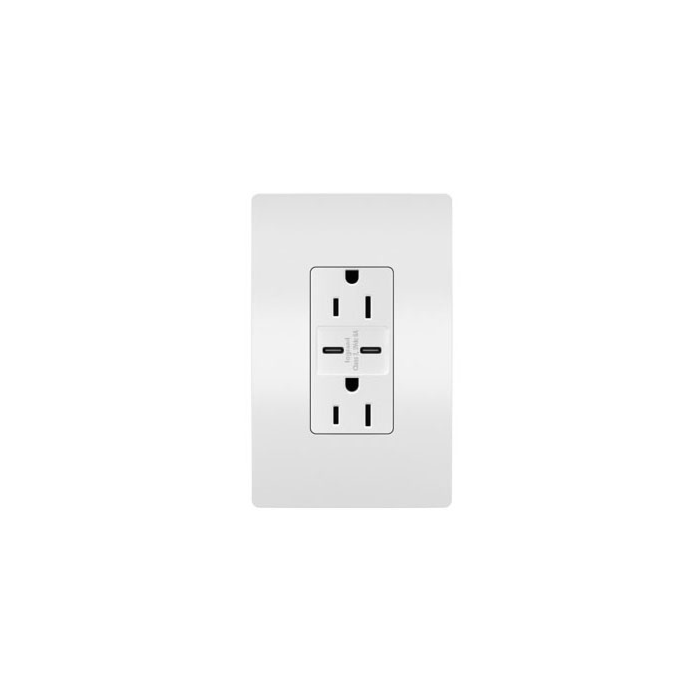

radiant® 15W USB Outlet, Type C, 15A, Tamper-Resistant, White
SKU: R26USBCC6W
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$62.99
Features
Specifications
Downloads
radiant® 15W USB Outlet, Type C, 15A, Tamper-Resistant, White
- Provides fast and convenient built-in charging, without sacrificing plugs or requiring a bulky adapter.
- Features an industry-leading 6.0A of power, as well as Smart Chip technology, to maximize charging speed for each USB connection.
- Accommodates the latest mobile devices with two USB Type-C connections.
- All Legrand USB Outlets are manufactured through high-quality design, sourcing and production, and backed by a Lifetime Warranty.
- Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with ""invisi-shutters"" for an invisible effect.
- Replaces a traditional outlet easily, in as little as 10 minutes, with features like scalloped cover design and posted side-wire terminal screws for faster installation.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
- UL Listed
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007207798 |
| Package Length (in) | 2.30" |
| Package Width (in) | 3.82" |
| Package Height (in) | 3.82" |
| Manufacturer Part Number | R26USBCC6WCCV6 |
| Depth | 1.35 in |
| Height | 4.18 in |
| Color | White |
| Finish | Satin |
| Width | 1.693 in |
| Country of Origin | China |
| Product Line | Pass & Seymour |
| Flanged | No |
| Voltage | 5.0 V |
| Amperage | 15.0 A |
| Mounting Type | Box |
| Number of USBs | 2.0 |
| USB Amperage | 6.0 A |
| USB Wattage | 15.0 W |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Wall Plate Included | No |
| Features | USB-C Charging |
| Is Tamper-Resistant | Yes |
| Outlet Type | Tamper-Resistant |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| Application Sector | Multi-Dwelling Unit |
| Connection Location | Back and Side |
| Jigsaw Channel Availability | Distribution |
| Available in Jigsaw Configurator | Yes |
| Wire Connection Type | Internal Pressure Plates |
| Warranty Type | Limited Lifetime Warranty |
| Special Features | Ultra-Fast USB Charging |
| Environmental Conditions | 95% (relative humidity, non-condensing) |
