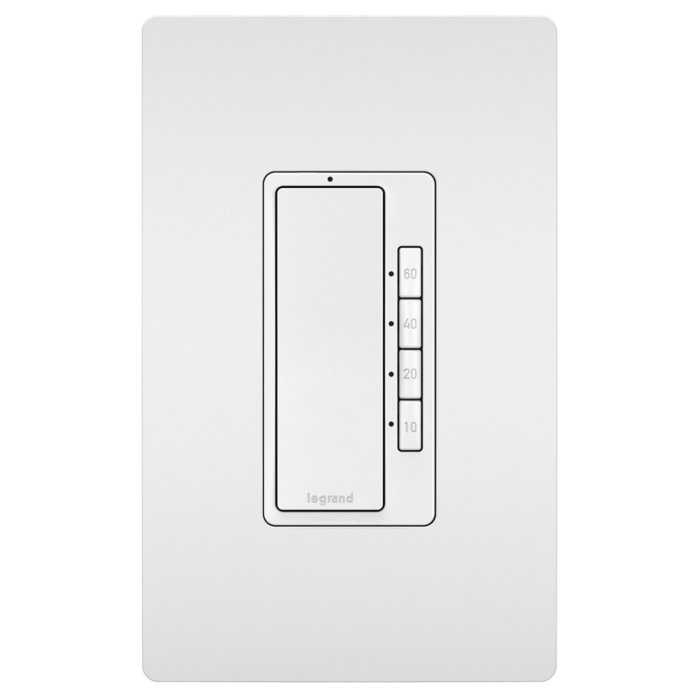

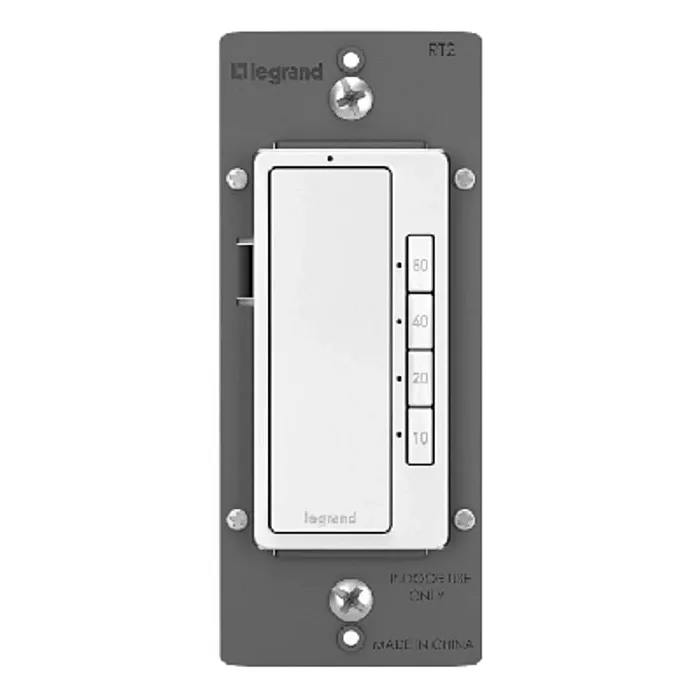

radiant® 4-Button Digital Timer, White
SKU: RT2W
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$27.99
Features
Specifications
Downloads
Installs easily in place of a standard light or fan switch, or older spring-wound timer and includes manual on/off through the paddle switch for added convenience. A locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
- Works with a variety of light bulbs or fixtures, including: Incandescent, LED, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.
- Automates control of lights for energy and cost savings. Also includes manual on/off through the paddle switch for added convenience.
- Lets you select a desired preset shut-off time, including 60, 40, 20 and 10 minutes.
- Installs easily in place of a standard light or fan switch, or older spring-wound timer.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- More color options available to fit any style.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007034387 |
| Store Location (Lititz, PA) | Aisle 05, Section D4 |
| Package Length (in) | 2.80" |
| Package Width (in) | 1.80" |
| Package Height (in) | 1.80" |
| Manufacturer Part Number | RT2WCCV4 |
| Depth | 1.88 in |
| Color | White |
| Height | 4.2 in |
| Width | 1.69 in |
| Finish | Satin |
| Material | Polycarbonate |
| Country of Origin | China |
| Product Line | Pass & Seymour |
| Type | Switch |
| Load Type | Incandescent |
| Features | Decorator Style |
| Amperage | 15.0 A |
| Voltage | 120.0 V |
| Switch Type | Paddle |
| Location Rating | Dry |
| Number of Gangs | 1.0 |
| Indoor/Outdoor | Indoor |
| Number of Buttons | 4.0 |
| Mounting Type | Wall Box |
| Number of Switches | 1.0 |
| Wall Plate Included | No |
| Contact Rating | 600Watts |
| Throw Type | Single Throw |
| Requires Neutral Wire | Yes |
| Load Rating | 15 A @ 120 VAC |
| Timing Range | 10-60 minutes |
| Number of Poles | Single Pole |
| Application Sector | Residential |
| Wire Connection Type | Wire Terminal |
| Connection Location | Back and Side |
| Horsepower Rating | 1/6 HP @ 120 VAC |
| Jigsaw Channel Availability | Retail |
| Warranty Type | 1-Year Limited Warranty |
| Terminal Accommodation | #14 AWG - #12 AWG |
