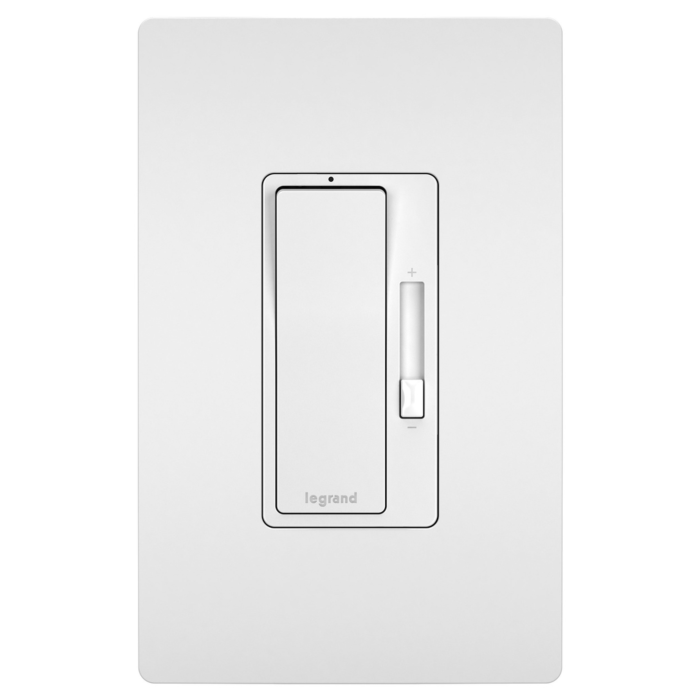

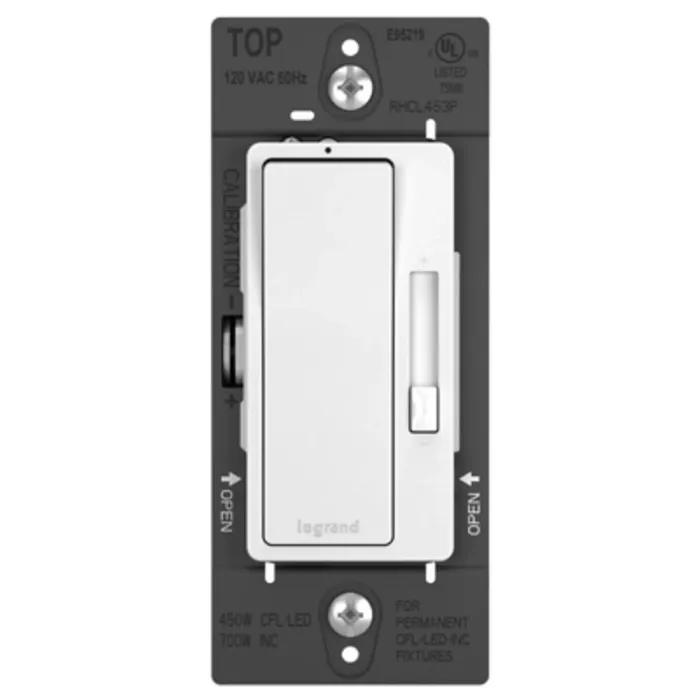

radiant® CFL/LED Dimmer, Tri-Color
SKU: RHCL453PTC
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$34.99
Features
Specifications
Downloads
Upgrade your space with precise dimming control and exceptional style, with this dimmer designed for use with most compact fluorescent and LED dimmable bulbs (not for use with 0-10V options). Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
- Replaces any basic switch or dimmer with ease, in both single-pole and 3-way applications. Rated for use with the following dimmable bulb types: 450W LED,CFL, 700W Incandescent, or 120VAC, 60Hz
- Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Constant memory features returns lights to their previous level after a power failure or outage.
- Adjustment dial allows users to adjust the bottom of the dimming range for a broad selection of CFL and LED bulbs.
- No derating* required in multi-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
- Features durable, high-impact resistant thermoplastic construction.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
- UL Listed
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007053760 |
| Store Location (Lititz, PA) | Aisle 09, Section D2 |
| Package Length (in) | 2.40" |
| Package Width (in) | 3.82" |
| Package Height (in) | 3.82" |
| Manufacturer Part Number | RHCL453PTCCCV6 |
| Depth | 1.25 in |
| Height | 4.25 in |
| Color | Ivory,Light Almond,White |
| Width | 1.75 in |
| Finish | Satin |
| Material | Steel,Thermoplastic |
| Country of Origin | China |
| Product Line | Pass & Seymour |
| Preset | Yes |
| Type | Dimmer |
| Load Type | Incandescent |
| Voltage | 120 VAC |
| Switch Type | Slider |
| Indoor/Outdoor | Indoor |
| Features | Low-End Trim (Dim Range) |
| Frequency Rating | 60 Hz |
| Mounting Type | Wall Box |
| Number of Switches | 1.0 |
| Wire Size | #14 - #10 AWG |
| Compatible Add-Ons | RHKIT |
| Requires Neutral Wire | No |
| Load Rating | 120V 700W (Incandescent) |
| Application Sector | Residential |
| Number of Poles | Single Pole 3-Way |
| Jigsaw Channel Availability | Retail |
| Dimming Compatibility | Forward Phase |
| Wire Connection Type | Screw Terminals |
| Warranty Type | Limited Lifetime Warranty |
| Maximum Humidity | 95% (relative humidity, non-condensing) |
