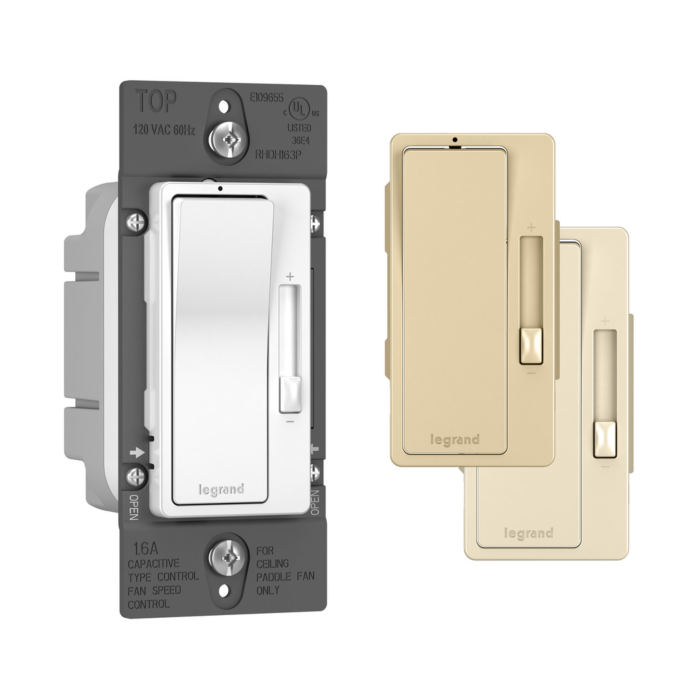

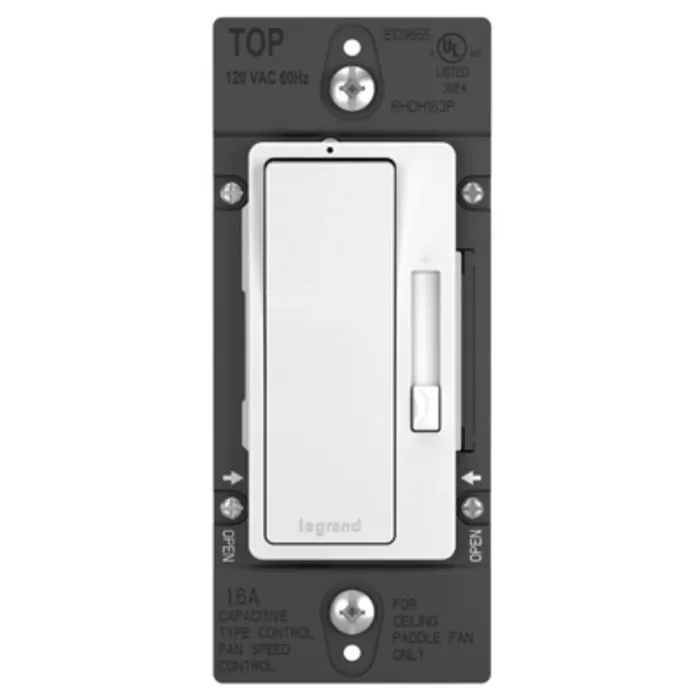

radiant® Single Pole/3-Way Fan Speed Control, Tri-Color
SKU: RHDH163PTC
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$37.99
Features
Specifications
Downloads
Upgrade your fan control with the sweet sound of silence. Specially designed to virtually eliminate the fan motor ""hum."" This device provides quieter fan speed control while featuring the sleek, clean lines of radiant® for a sophisticated touch. This fan control switch handles a max load of 1.6A.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
- Designed to virtually eliminate the motor's hum for quieter use.
- Installs easily in place of a standard light or fan control switch. Rated for a max load of 1.6A.
- Offers installation flexibility, working in both single-pole and 3-way applications.
- Returns the fan to its previous level after a power failure.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- More color options available to fit any style.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
- UL Listed
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007053692 |
| Store Location (Lititz, PA) | Aisle 03, Section Z1 |
| Package Length (in) | 2.40" |
| Package Width (in) | 3.82" |
| Package Height (in) | 3.82" |
| Manufacturer Part Number | RHDH163PTCCCV6 |
| Depth | 1.25 in |
| Preset | Yes |
| Height | 4.25 in |
| Voltage | 120 VAC |
| Width | 1.75 in |
| Country of Origin | China |
| Switch Type | Slider |
| Indoor/Outdoor | Indoor |
| Number of Poles | Single Pole |
| Features | De-Hummer Fan Control |
| Frequency Rating | 60 Hz |
| Load Type | AC Fan Motor |
| Mounting Type | Wall Box |
| Number of Switches | 1.0 |
| Type | Fan Speed Control |
| Wire Size | #14 - #10 AWG |
| Compatible Add-Ons | RHKIT |
| Requires Neutral Wire | No |
| Application Sector | Multi-Dwelling Unit |
| Load Rating | 120V 1.6A (FAN MOTOR) |
| Wire Connection Type | Flying Leads |
| Jigsaw Channel Availability | Retail |
| Dimming Compatibility | Fan Speed Only |
| Warranty Type | Limited Lifetime Warranty |
| Color | Ivory,Light Almond,White |
| Finish | Satin |
| Material | Steel,Thermoplastic |
| Product Line | Pass & Seymour |
