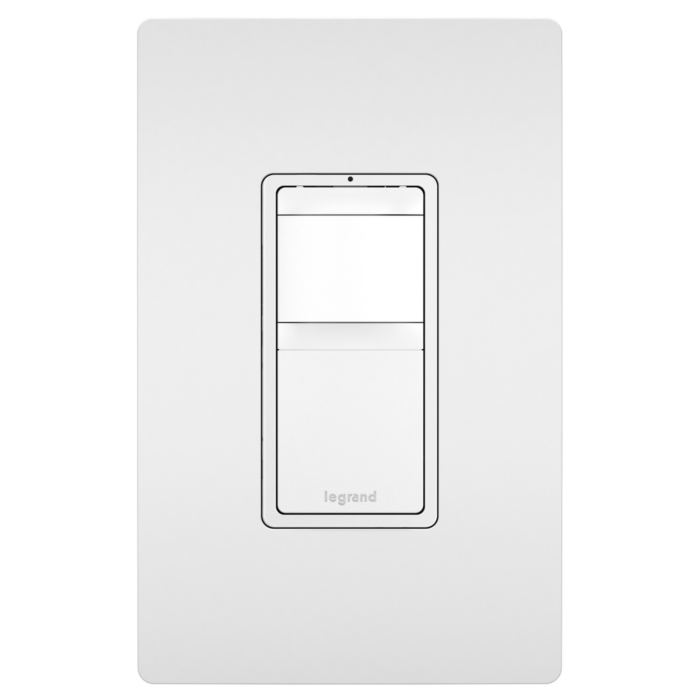

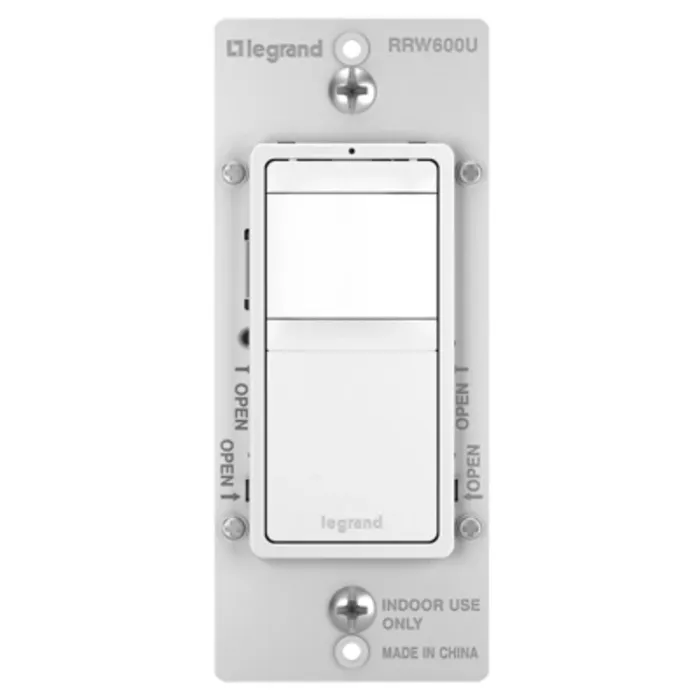

radiant® Single Pole 3-Way Occupancy Sensor, White
SKU: RRW600UTC
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$32.99
Features
Specifications
Downloads
Simplify control while saving energy, with the radiant® Occupancy Sensor. Automatically turning the light on when someone enters a room, and shutting it off when the room is empty, this sensor includes an adjustable timed delay for shut off, as well as additional settings for more flexible control. Part of the radiant® Collection, it features clean lines and smooth paddle action for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
- Passive infrared (PIR) sensor switch technology with 180° coverage up to 600 sq. ft. Rated for up to 600W (5A) of LED lighting.
- Works with virtually any bulb/fixture, including: LED, incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.
- Turn the light on when you enter, and let it turn itself off automatically after you leave for true convenience. Perfect for bathrooms, hallways, closets, garages, and more.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Features an adjustable time delay to off after no motion is detected. Delay settings range from 30 seconds to 20 minutes after the room is vacated (default 5 minute delay).
- Auto ON/Auto OFF functionality as default. Easily configurable to Manual ON/Auto OFF to meet any need or preference in the home.
- Replace any basic light or fan switch in 15 minutes or less. Supports single pole and multi-location installs. No neutral required.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- UL Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007496574 |
| Store Location (Lititz, PA) | Aisle 09, Section D2 |
| Package Length (in) | 2.40" |
| Package Width (in) | 3.82" |
| Package Height (in) | 3.82" |
| Manufacturer Part Number | RRW600UTCCCV4 |
| Depth | 1.88 in |
| Color | White |
| Height | 2.63 in |
| Finish | Satin |
| Width | 1.69 in |
| Material | Polycarbonate,Steel |
| Country of Origin | China |
| Product Line | Pass & Seymour |
| Type | Switch |
| Load Type | Incandescent:Fluorescent |
| Voltage | 120 VAC |
| Wattage | 600.0 W |
| Switch Type | Motion Sensor |
| Sensor Type | Occupancy |
| Indoor/Outdoor | Indoor |
| Input Voltage | 120 VAC |
| Features | Adjustable Time Delay |
| Line Frequency | 60.0 Hz |
| Mounting Type | Wall Box |
| Wire Size | #14 - #10 AWG |
| Requires Neutral Wire | No |
| Timer Duration | 30 Seconds-20 Minutes |
| Load Rating | 120V 600W (Incandescent) |
| Sensor Coverage | 600.0 sq ft |
| Application Sector | Multi-Dwelling Unit |
| Installation Location | Wall Box |
| Number of Poles | Single Pole 3 Way |
| Sensing Range | Minor Motion 20 ft |
| Wire Connection Type | Flying Leads |
| Horsepower Rating | 1/6 HP @ 120 VAC |
| Jigsaw Channel Availability | Retail |
| On Function | Selectable Auto/Manual |
| Sensor Coverage Pattern | 180.0 ° |
| Warranty Type | Limited Lifetime Warranty |
| Sensor Technology | Passive Infrared (PIR) |
| Operating Humidity | 0-95% RH (Non-Condensing) |
