Pass & Seymour

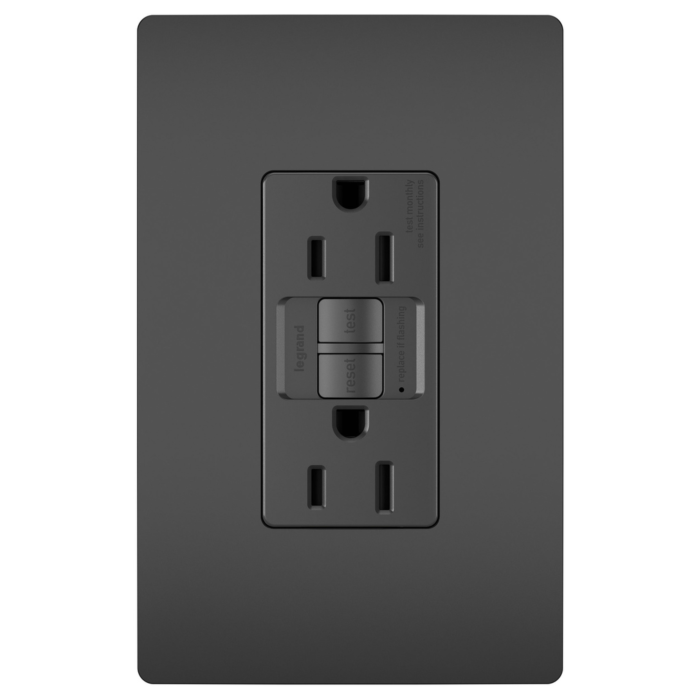

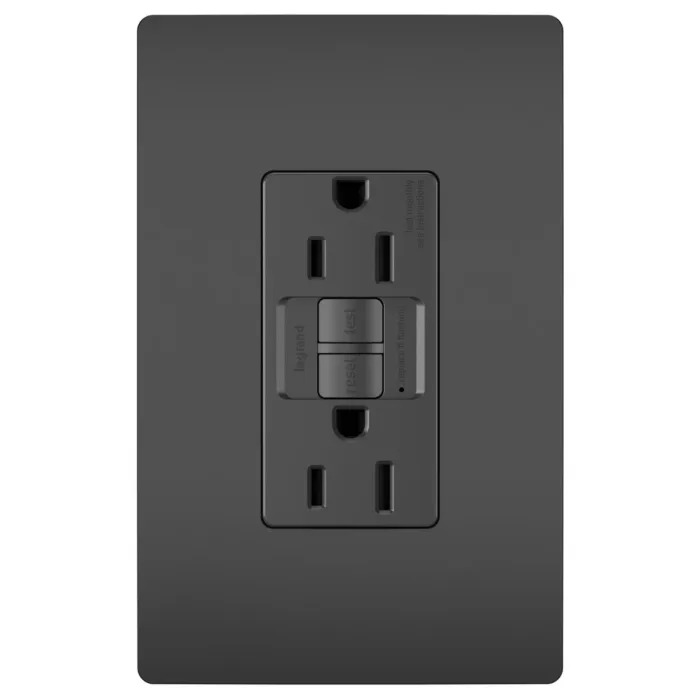

radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Black

SKU: 1597TRBK
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store Out of stock
Features chevron-down chevron-up
GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. Maximize safety, in style, with GFCI protection featuring the sleek, clean lines of radiant.GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.
  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.
  • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
  • Extends GFCI protection to ""downstream"" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with ""invisi-shutters"" for an invisible effect.
  • Replaces any standard receptacle with ease, in as little as 10 minutes.
  • Features durable, high-impact resistant thermoplastic construction.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • UL Listed
  • cULus Listed
Specifications chevron-down chevron-up
Brand Pass & Seymour
UPC 785007135572
Store Location (Lititz, PA) Aisle 09, Section D4
Package Length (in) 2.00"
Package Width (in) 1.75"
Package Height (in) 1.75"
Manufacturer Part Number 1597TRBKCCD4
Depth 1.13 in
Color Black
Height 4.2 in
Finish Satin
Width 1.73 in
Product Line Pass & Seymour
Country of Origin China
Amperage 15.0 A
Voltage 125.0 V
Outlet Type Tamper-Resistant
Mounting Type Box
Features Self-Test
Number of Gangs 1.0
Number of Wires 3.0
Indoor/Outdoor Indoor
Frequency Rating 60 Hz
Wall Plate Included No
Is Tamper-Resistant Yes
Number of Receptacles 2.0
Number of Poles Double Pole
Special Features Spec Grade
Application Sector Multi-Dwelling Unit
NEMA Configuration Code 5-15R
Connection Location Back and Side
Jigsaw Channel Availability Retail
Wire Connection Type Internal Pressure Plates
Warranty Type 1-Year Limited Warranty
Environmental Conditions 95% Humidity, UL 94 V2
