Pass & Seymour

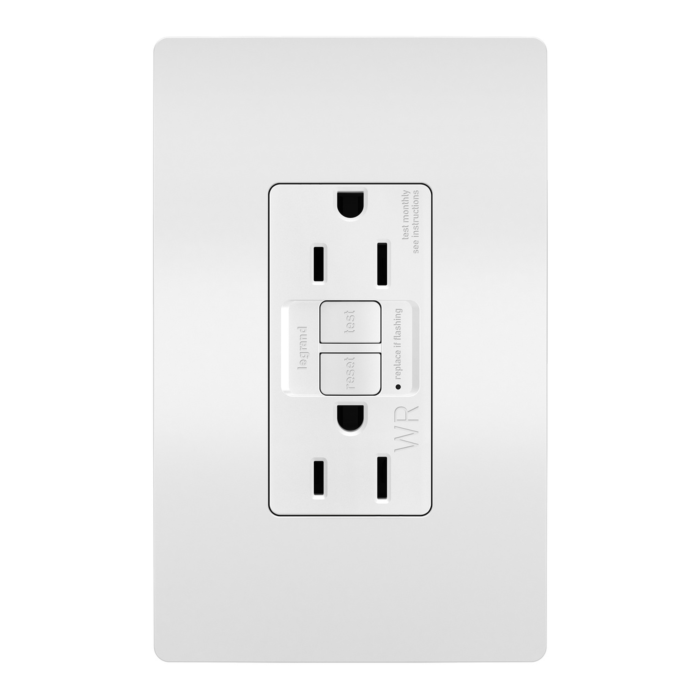

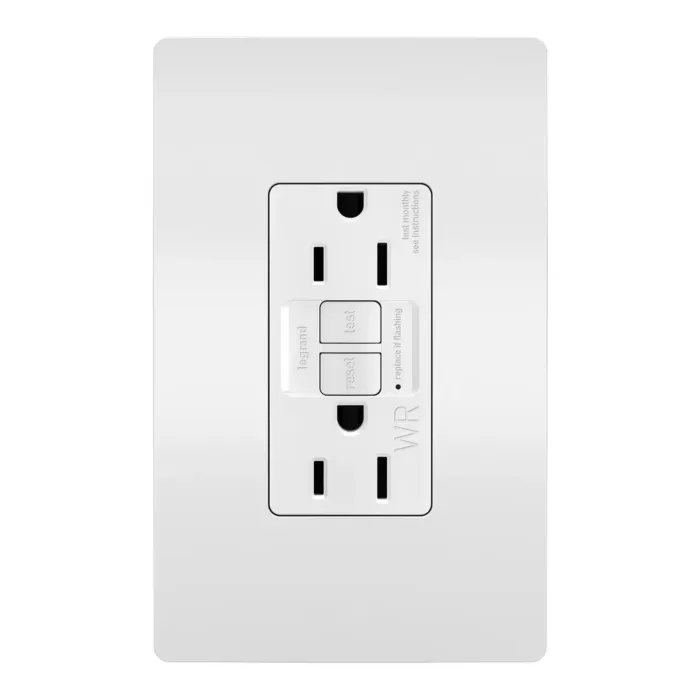

radiant® Tamper-Resistant Weather-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White

SKU: 1597TRWRW
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 25 in stock
Features chevron-down chevron-up
GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. Also including tamper and weather resistance, this model was designed for use on decks, patios, pool areas, and other outdoor spaces. Maximize safety, in style, with GFCI protection featuring the sleek, clean lines of radiant. GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.
  • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
  • Extends GFCI protection to ""downstream"" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.
  • Designed with weather-resistance for use in outdoor locations such as decks, patios and pool areas. *Must be installed in weatherproof enclosure per NEC requirements.
  • Replaces any standard receptacle with ease, in as little as 10 minutes.
  • Features durable, high-impact resistant thermoplastic construction.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • UL Listed
  • cULus Listed
Specifications chevron-down chevron-up
Brand Pass & Seymour
UPC 785007135787
Store Location (Lititz, PA) Aisle 09, Section D4
Package Length (in) 2.00"
Package Width (in) 1.75"
Package Height (in) 1.75"
Manufacturer Part Number 1597TRWRWCCD4
Depth 1.13 in
Height 4.2 in
Color White
Width 1.73 in
Finish Satin
Country of Origin China
Product Line Pass & Seymour
Amperage 15.0 A
Voltage 125.0 V
Outlet Type Weather-Resistant
Mounting Type Box
Features Weatherproof
Indoor/Outdoor Both
Number of Gangs 1.0
Number of Wires 3.0
Frequency Rating 60 Hz
Wall Plate Included No
Is Tamper-Resistant Yes
Number of Receptacles 2.0
Number of Poles Double Pole
Application Sector Multi-Dwelling Unit
NEMA Configuration Code 5-15R
Connection Location Back and Side
Jigsaw Channel Availability Retail
Wire Connection Type Internal Pressure Plates
Warranty Type 1-Year Limited Warranty
Special Features Spec Grade, Weather Resistant
Environmental Conditions 95% Humidity, UL 94 V2
