Features
Specifications

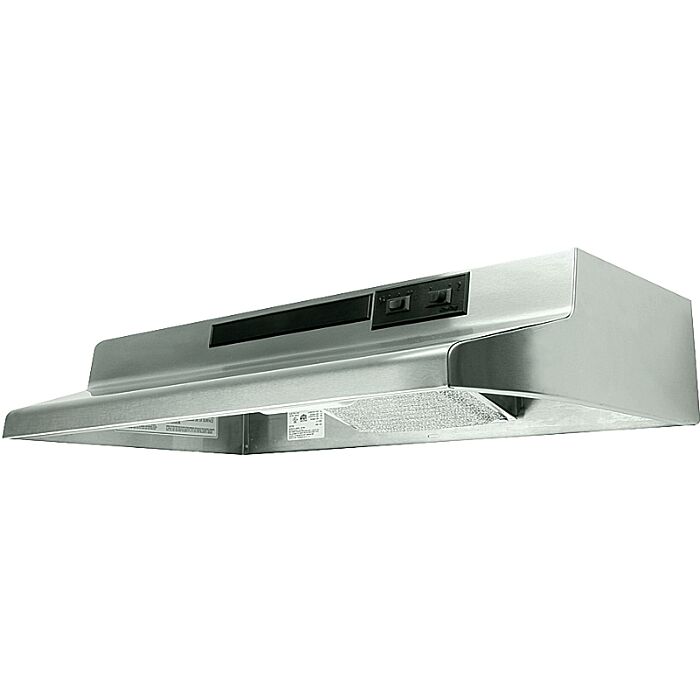

Low profile contemporary style with a 60 watt maximum cook top light (bulb not included) and a two speed fan control. Comes equipped for 3-1/4" x 10" vertical or horizontal ducting, (duct adapter and damper included). Can be converted to ductless operation with the addition of model RF-34 charcoal odor filter, (not included), or to a 7" round, for vertical ducting, with the addition of model E-22A collar and damper, (not included). 180 CFM, 7.0 Sones/Horizontal, 180 CFM, 7.5 Sones/Vertical. UL Listed. HVI 2100 Certified. Uses #RF-34S filter.
UPC | 083162660688 |
---|---|
Store Location (Lititz, PA) | Aisle 05, Section D2 |
Package Length (in) | 6.75" |
Package Width (in) | 23.75" |
Package Height (in) | 34.38" |
Current Rating | 21 A |
Depth | 12 in |
Duct Size | 3-1/4 x 10 in |
Fan Speed | 2 |
Filter Type | Grease |
Flow Rate | 180 cfm |
Height | 6 in |
Includes | Light Lens Mounting Screws |
Light Type | CFL Incandescent |
Material | Steel |
Operating Frequency | 60 Hz |
Sones | 7 Horizontal 75 Vertical |
Voltage Rating | 120 V |
Wattage Rating | 87 W |
Width | 30 in |
