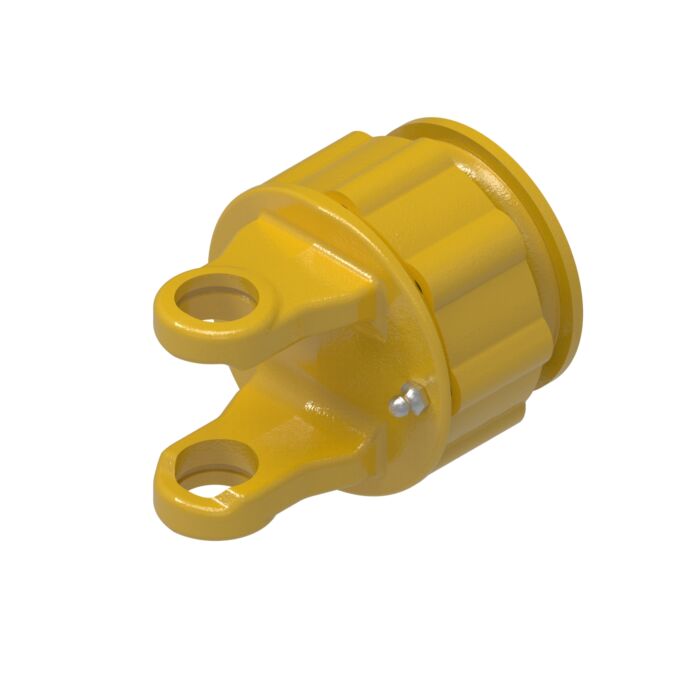

AB2,AW20 series ratchet clutch yoke with 1 3/8-6 spline bore and spring-lok connection
SKU: 5708206
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$164.78
Features
Specifications
The ratchet clutch allows implement overload protection with a unique pulsating torque while disengaged. When the overload occurs, the torque is transmitted in pulses accompanied by an audible sound. This pulsation aids in pushing clearing the blockage. Therefore, the operator may not need to leave the operator seat or even slow down to clear the blockage. The clutch will re-engage when the transmitted torque drops below the calibrated torque value.
| Brand | Weasler |
|---|---|
| UPC | 728357308630 |
| Store Location (Lititz, PA) | Aisle 08, Section W4 |
| Package Length (in) | 3.00" |
| Package Width (in) | 1.60" |
| Package Height (in) | 2.80" |
| Manufacturer Part Number | 570-8206 |
| Length | 4.39 inch |
| Height | 3.819 inch |
| Width | 3.819 inch |
| Weight | 5.48 lb |
| Series | AB2,AW20 |
| Outside Diameter | 3.819" |
| Bore | 1.375" |
| Bore Description | 1 3/8-6 SPLINE |
| Connection 1 Description | SPRING-LOK |
| Torque | 2700 in-lb |
| Bearing Diameter | 0.938" |
| Bearing Span | 2.406" |
| Horsepower at 540 RPM | 25 hp |
| Horsepower at 1000 RPM | 38 hp |
