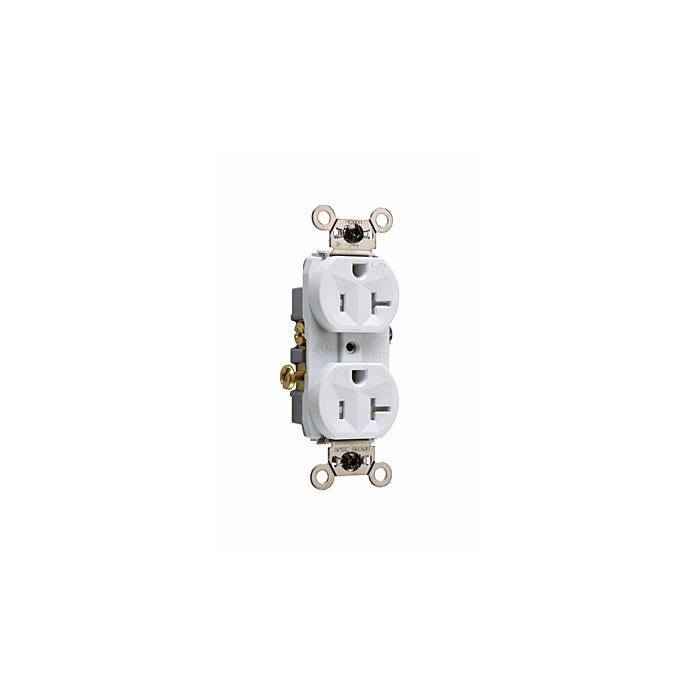

20A 125V Commercial Grade Tamper-Resistant Weather-Resistant Duplex Receptacle, White
SKU: WR20TRW
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$9.29
Features
Specifications
Downloads
20A 125V Commercial Grade Tamper-Resistant Weather-Resistant Duplex Receptacle, White
- Auto-ground clip assures positive ground.
- Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Tri-drive brass terminal screws. Internal screwpressure plate back and side wire capability. Two back wire holes for more wiring flexibility.
- Heavy-duty, brass strap for added strength and ground conductivity.
- Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- .032 inch thick brass triple-wipe power contacts for lasting retention.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007242577 |
| Store Location (Lititz, PA) | Aisle 09, Section D3 |
| Package Length (in) | 1.94" |
| Package Width (in) | 1.38" |
| Package Height (in) | 1.38" |
| Manufacturer Part Number | WR20TRW |
| Depth | 0.78 in |
| Color | White |
| Height | 2.635 in |
| Width | 1.322 in |
| Finish | Matte |
| Product Line | Pass & Seymour |
| Country of Origin | Mexico |
| Standard | CSA C22.2 No. 42 |
| Amperage | 20.0 A |
| Voltage | 125.0 V |
| Number of Wires | 3.0 |
| Features | Brass Mounting Strap |
| Wire Size | 14 - 10 AWG |
| Indoor/Outdoor | Outdoor |
| Wall Plate Included | No |
| Is Tamper-Resistant | Yes |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| Outlet Type | Weather-Resistant |
| Application Sector | Commercial |
| Connection Location | Side Only |
| NEMA Configuration Code | 5-20R |
| Wire Connection Type | Internal Pressure Plates |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature Min | -40.0 °C |
| Operating Temperature | -40°-60°C |
| Dielectric Strength | Withstands 1500V minimum |
