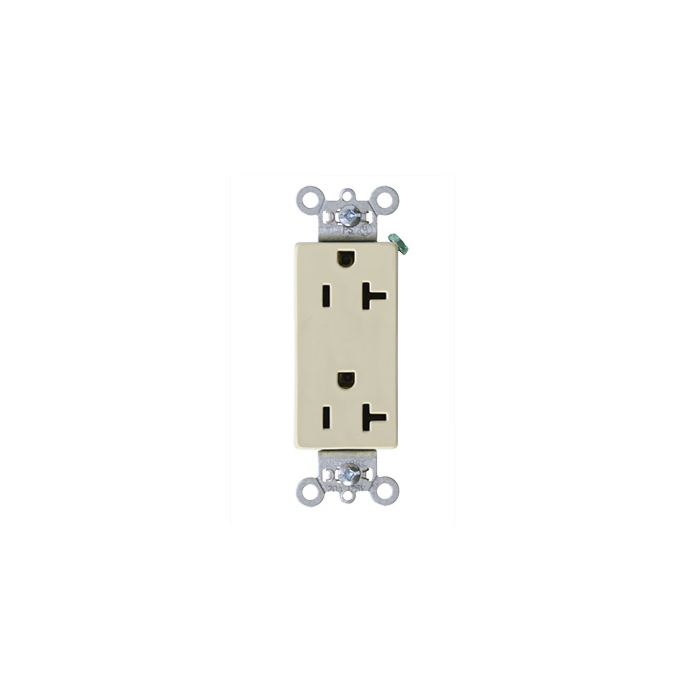

20A 125V Heavy Duty Spec-Grade Decorator Duplex Receptacle, Back and Side Wire, Ivory
SKU: E26342I
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$9.99
Features
Specifications
Downloads
20A 125V Heavy Duty Spec-Grade Decorator Duplex Receptacle, Back and Side Wire, Ivory
- cULus Listed
- Federal Spec Listed
- Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
- Rated 15 amperes
- Heavy-duty compact design for easier installation and long lasting performance.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face.
- Terminal compartments isolated from each other for positive conductor containment.
- Tri-drive terminal and mounting screws.
- Auto-ground clip assures positive ground
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007785210 |
| Store Location (Lititz, PA) | Aisle 09, Section D3 |
| Package Length (in) | 1.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 3.00" |
| Manufacturer Part Number | 26342I |
| Depth | 0.833 in |
| Height | 2.635 in |
| Special Features | Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body. One-piece, brass, triple-wipe power contacts for lasting retention. Heavy-duty compact design for easier installation and long lasting performance. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. Terminal compartments isolated from each other for positive conductor containment. Side wire accepts #14 - #10 AWG solid or stranded wire. All devices fit standard #26 opening wall plate. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground. |
| Standard | cUL CSA |
| Width | 1.322 in |
| Country of Origin | Mexico |
| Amperage | 20.0 A |
| Voltage | 125.0 V |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Features | Single Piece Plated Steel Mounting Strap |
| Number of Receptacles | 2.0 |
| Outlet Type | Straight Blade |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| Connection Location | Side Only |
| NEMA Configuration Code | 5-20R |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Dielectric Strength | Withstands 2000V minimum |
| Environmental Conditions | Flammability: UL94 V2 |
| Color | Ivory |
| Product Line | Pass & Seymour |
