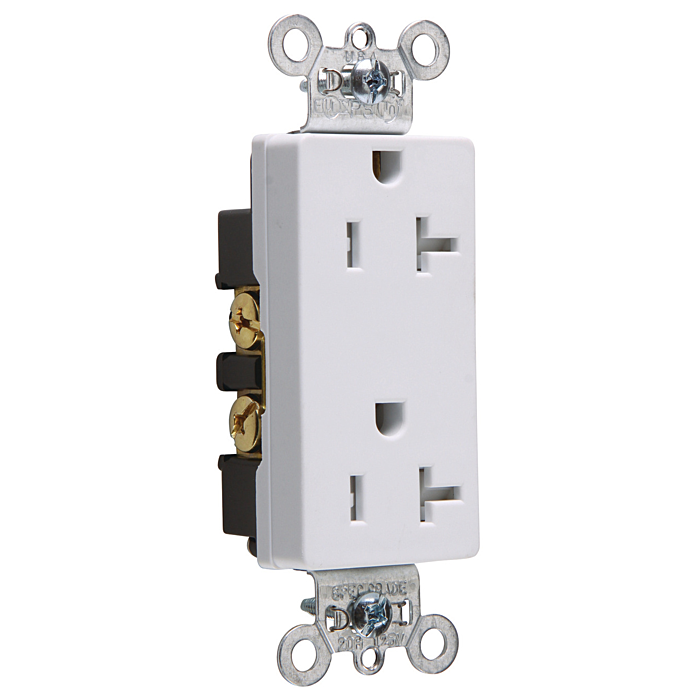

20A 125V Spec-Grade Tamper-Resistant Decorator Duplex Receptacle, Side Wire, White
SKU: TR26342W
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$6.29
Features
Specifications
20A 125V Spec-Grade Tamper-Resistant Decorator Duplex Receptacle, Side Wire, White
- cULus Listed
- Dual mechanical shutter system to help prevent insertions of foreign objects.
- AC receptacles available in 15 and 20A, 125V.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive steel terminal screws. Side wire only.
- For covering patents, see www.legrand.us/patents.
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007034929 |
| Store Location (Lititz, PA) | Aisle 09, Section D3 |
| Package Length (in) | 1.94" |
| Package Width (in) | 1.38" |
| Package Height (in) | 1.38" |
| Manufacturer Part Number | TR26342W |
| Depth | 0.93 in |
| Height | 3.28 in |
| Color | White |
| Width | 1.37 in |
| Finish | Matte |
| Country of Origin | Mexico |
| Product Line | Pass & Seymour |
| Amperage | 20.0 A |
| Voltage | 125.0 V |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Wall Plate Included | No |
| Is Tamper-Resistant | Yes |
| Features | Single Piece Plated Steel Mounting Strap |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| Outlet Type | Tamper-Resistant |
| Application Sector | Commercial |
| Connection Location | Side Only |
| NEMA Configuration Code | 5-20R |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
