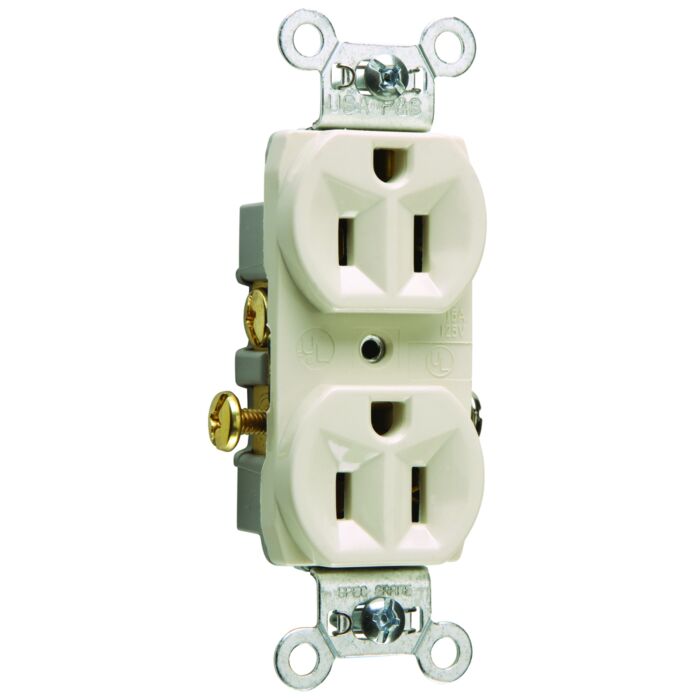

125 V 15 A Commercial Duplex Receptacle
SKU: ECR15LA
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$2.79
Features
Specifications
Duplex Receptacle, 125 V, 15 A, 2 Pole, Commercial Grade, NEMA 5-15R, TriDrive Terminal, Positive Conductor, Wall Mount, Side Wire, Brass Contact, Steel Strap, Light Almond, -40 to 50 deg C, 0.78 in Length, 1.322 in Width, 3.281 in Height
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
- Easily accessed break-off, line contact connecting tab for fast, easy split circuit wiring
- Impact-resistant nylon face and thermoplastic back body
- Accepts #14 to #10 AWG solid or stranded copper or copper-clad wire
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- Auto-ground clip assures positive ground
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007608038 |
| Store Location (Lititz, PA) | Aisle 09, Section D3 |
| Package Length (in) | 4.20" |
| Package Width (in) | 1.60" |
| Package Height (in) | 1.40" |
| Manufacturer Part Number | CR15LA |
| Voltage Rating | 125 V |
| Current Rating | 15 A |
| Number of Poles | 2 |
| Grade | Commercial |
| NEMA Rating | NEMA 5-15R |
| Terminal Type | TriDrive |
| Conductor Type | Positive |
| Mounting Type | Wall |
| Connection Type | Side Wire |
| Contact Material | Brass |
| Strap Material | Steel |
| Color | Light Almond |
| Temperature Rating | -40 to 50 deg C |
| Length | 0.78 in |
| Width | 1.322 in |
| Height | 3.281 in |
