Pass Seymour

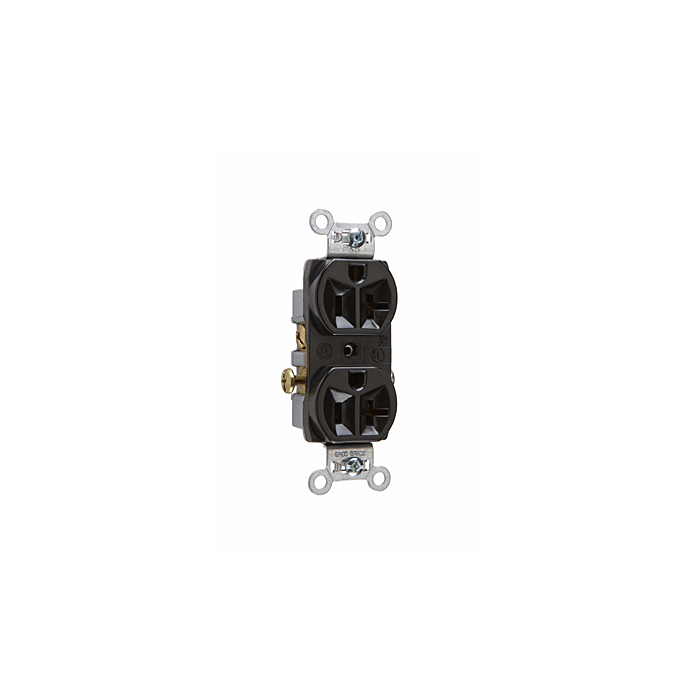

20A 125V Commercial Spec-Grade Duplex Receptacle, Side Wire, Black
SKU: ECR20BK | Location: Aisle 09, Section D3
$3.79
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
13 In stock
Features
Specifications
Downloads
Commercial Spec Grade Duplex Receptacle, Side Wire 20A 125V
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and thermoplastic back body.
- Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
- Terminal compartments isolated from each other for positive conductor containment.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
- cULus Listed
| Brand | Pass Seymour |
|---|---|
| UPC | 785007119107 |
| Store Location (Lititz, PA) | Aisle 09, Section D3 |
| Package Length (in) | 1.94" |
| Package Width (in) | 1.38" |
| Package Height (in) | 1.38" |
| Manufacturer Part Number | CR20BK |
| Country of Origin | Mexico |
| Color | Black |
| Finish | Matte |
| Product Line | Pass & Seymour |
