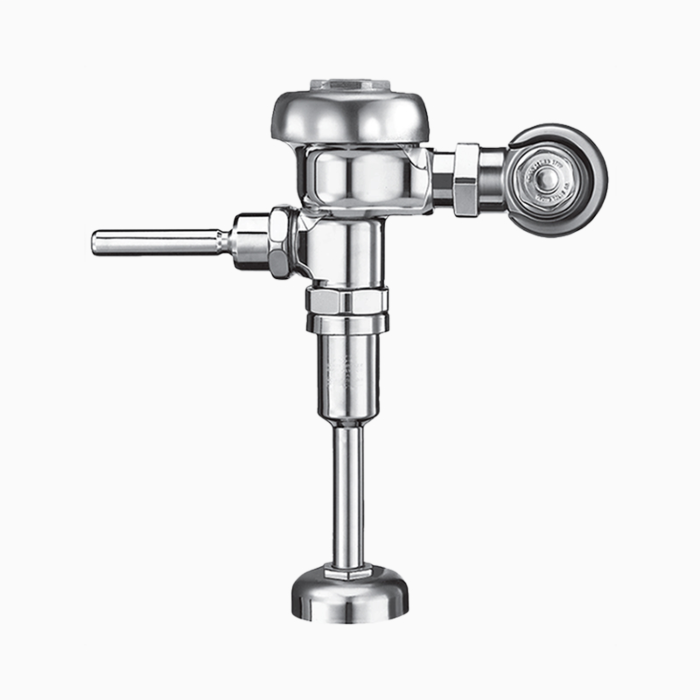

REGAL 186-1 XL
- Flush volumes start as low as 0.5 gF/1.9 LF
- Water conservation is aided by the ADA-compliant, non-hold-open handle , which prevents urinal from exceeding intended Flushvolume
- Low ConsumTion Flushaccuracy controlled by Para-Flo technology
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Brand | Sloan |
---|---|
UPC | 818225700113 |
Store Location (Lititz, PA) | Aisle 07, Section H2 |
Package Length (in) | 8.00" |
Package Width (in) | 8.00" |
Package Height (in) | 16.00" |
Manufacturer Part Number | 3082675 |
CSA | No |
MISC2 | No |
Certificate of Conformity | No |
CalGreen | No |
Carbon Neutral | No |
CEC Compliant | No |
cUPC certified | Yes |
cUPCGreen Certified | No |
Declare | No |
EPD | No |
GPC 0.25 or less | No |
HPD | No |
IAPMO | No |
LEED | No |
Redlist Free | No |
UL | No |
UPC | No |
UPC Low Lead | No |
Watersense | No |
Compliance (Certification ADA) | Yes |
BAA Compliant | No |
Product Line | Regal® |
Activation | Manual |
Adjustable Tailpiece | Yes |
Country of Origin | United States |
Deoseptic Unit | No |
Finish | Polished Chrome |
Fixture Connection | Top |
Fixture Mount | Wall |
Fixture Type | Urinal |
Flush Mechanism | Single |
Flush Volume | 1 |
Height | 4.375 |
Hydraulic | No |
Installation | Exposed |
Operating Pressure | 15-80 |
PWT Push Button | No |
Reclaimed water | No |
Replacement Product | No |
Retrofit | No |
Rough-In Dimension | 11.5 |
Spud Coupling | 0.75 |
Supply Pipe | 0.75 |
Valve | Diaphragm |
Valve Body Material | Semi-red Brass |
Volume | 0.225 FTQ |
Water Efficiency | Low Consumption |
All Faucets Link | No |
All Soap Dispensers Link | No |
Conversion Kit | No |
Omit From Configurator | No |
Optional Shroud Shown | No |
Replacement | No |
Special Finish Special Order Only | No |
Integrated Soap Dispenser | No |
