DAYTON

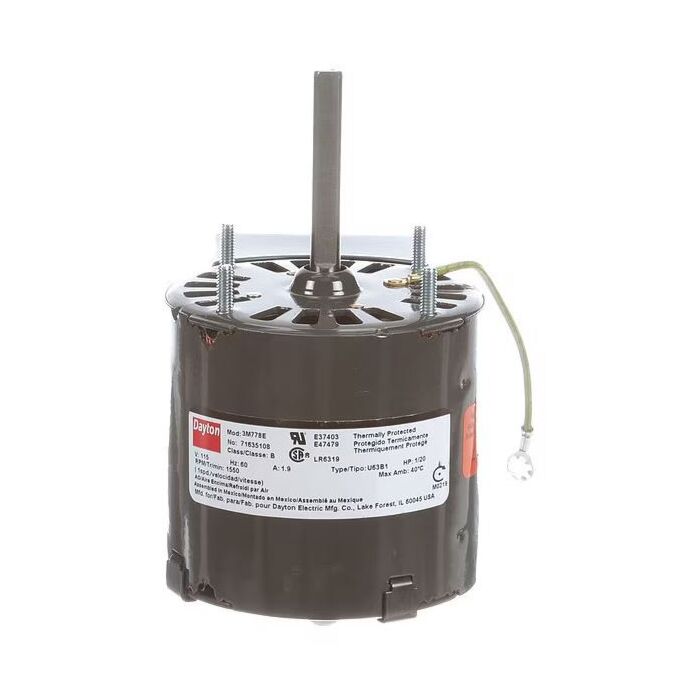

115 V 2.1 A 1/20 hp Motor
SKU: 3M778
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$89.99
Features
Specifications
This 1/20 HP, single-phase shaded pole HVAC motor operates at 1,550 RPM (1 speed) on 115V AC (2.1 Amps, 60 Hz). Built on a 3.3 frame for continuous duty, it features an open air-over (OAO) design, auto thermal protection, Class B insulation, and clockwise shaft end (CWSE) rotation. It supports flexible installation with an all-angle stud mount.
| Brand | DAYTON |
|---|---|
| Store Location (Lititz, PA) | Aisle 04, Section D2 |
| Package Length (in) | 3.60" |
| Package Width (in) | 2.40" |
| Package Height (in) | 3.00" |
| Voltage Rating | 115 V |
| Current Rating | 2.1 A |
| HP Rating | 1/20 hp |
| Speed | 1550 rpm |
| Frequency Rating | 60 Hz |
| Phase | 1 ph |
| Motor Enclosure Type | Open Air-Over |
| Frame Size | 3.3 |
| Shaft Size | 5/6" x 2-1/4" |
| Rotation Type | CWSE |
| Number of Speeds | 1 |
| Duty Cycle | Continuous |
| Mounting Type | Stud |
| Temperature Rating | 40 deg C |
| Application | For OEM and replacement use in a wide variety of fan and blower |
