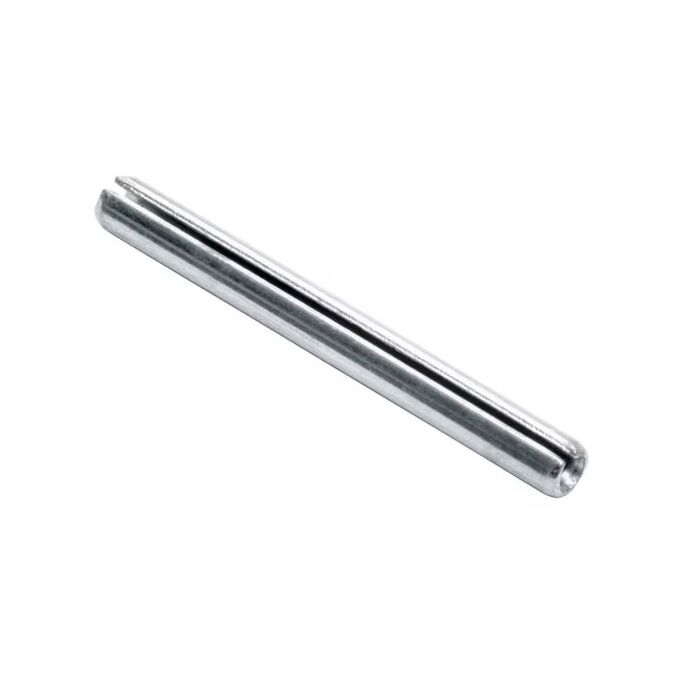

3/16 in 1-1/4 in Steel Slotted Spring Roll Pin
SKU: RP316X114
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$0.32
Features
Specifications
Spring Roll Pin, Slotted, 3/16 in Pin Dia, 1-1/4 in Pin Length, 0.187 - 0.192 in Hole Dia, 0.04 in Wall Thickness, 4150 lb Shear Strength, HV 458-560 Hardness, High Carbon Steel, Zinc Clear, Standards: ASME B18.8.2
| Store Location (Lititz, PA) | Aisle 10, Section T3 |
|---|---|
| Package Length (in) | 0.18" |
| Package Width (in) | 0.18" |
| Package Height (in) | 1.25" |
| Type | Slotted |
| Pin Diameter | 3/16 in |
| Pin Length | 1-1/4 in |
| Hole Diameter | 0.187 - 0.192 in |
| Wall Thickness | 0.04 in |
| Shear Strength | 4150 lb |
| Hardness | HV 458-560 |
| Material | High Carbon Steel |
| Finish | Zinc Clear |
| Standards | ASME B18.8.2 |
